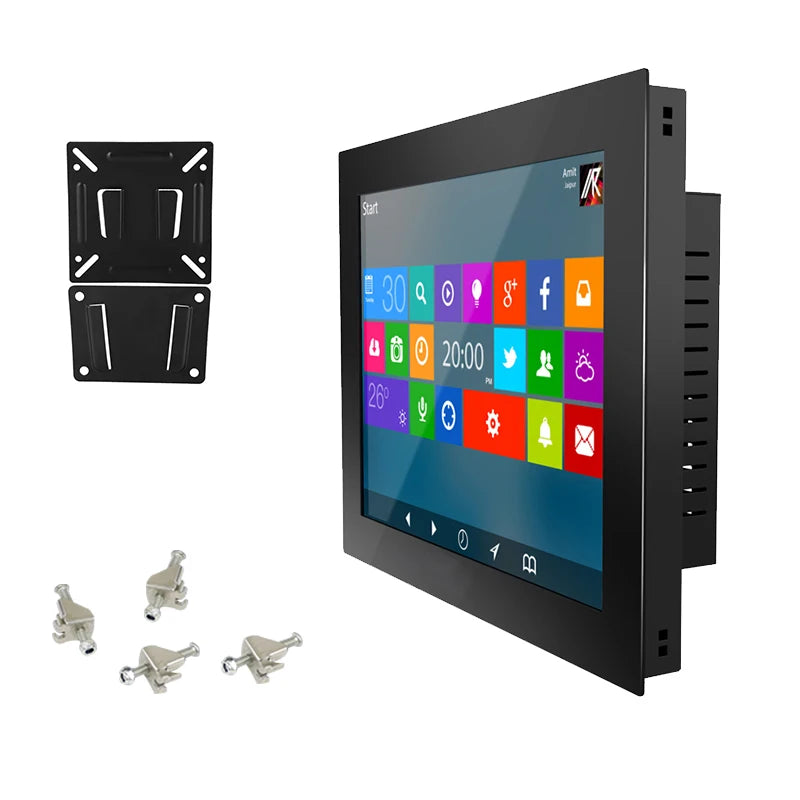

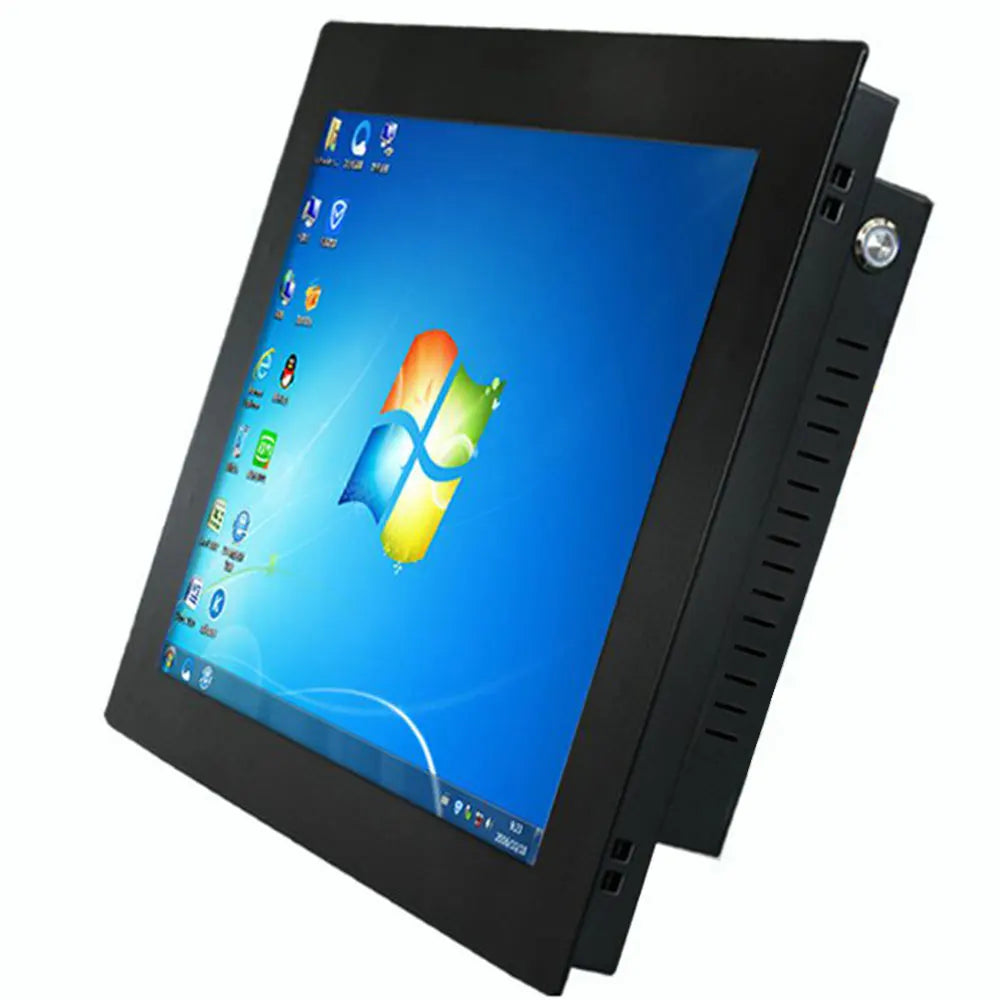

12" 10" 15 Inch Industrial Tablet Panel PC Desktop Computer Resistive Touch Core i3 Win XP/7/10 System USB SSD WiFi Mini PC
12" 10" 15 Inch Industrial Tablet Panel PC Desktop Computer Resistive Touch Core i3 Win XP/7/10 System USB SSD WiFi Mini PC
Free Shipping for US
30-Day Returns
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Balahome
Hard Drive Capacity: 32Gb
Memory Capacity: /
Model Number: Bala10-17KKytj
Port: HDMI VGA RJ-45 COM USB
Weight: 5
Graphics Card Chipset: HD Graphics
Type: All-In-One
Memory Capacity: 4GB
Origin: Mainland China
HDD Rotation Speed: SSD
Mouse & Keyboard: No
Drive Type: No CD ROM
RAM Type: DDR3
Max Boost Speed: 1.8Ghz
Dispaly Ratio: 4:3
Power: 30W
Chipset Type: i3-3217U
Graphics Card Type: Integrated Card
Display Type: TOUCH SCREEN
Operating System: Windows 7
Processor Core: Dual Core
Industrial PC Resistive touch computer
10.4 inch(1024*768)/12.1 inch(1024*768)/15 inch(1024*768)
industrial computer parameters
Brand：Balahome
Aterial：Metal
Memory: optional 2GB/4GB/8GB DDR3 System Memory
Storage:optional 32Gb/64Gb/128Gb /256Gb/512Gb SDD
System: Support Windows XP/7/10/Linux system
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 5-7Kgs
System Parameter：
integrated Intel Core i3 3217U（2 cores,Level three cache: 3MB, 1.8 GHz,TDP power consumption:17w,Graphics core: Intel HD Graphics 4000）
Storage space：No SDD/32G/64G / 128G / 256G Optional）
internal storage：Optional No RAM/4GB/8GB DDR3 System memory
Parameters of LCD Touch screen：
Brightness：250cd/m2 (Need a high-brightness display, please contact us)
Contrast Ratio：1000:1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 12V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance：75*75mm
Delivery Time
Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days
★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!
Size
Resolution: 10.4 inch(1024*768)/12.1 inch(1024*768)/15 inch(1024*768)
Unit of measure: mm

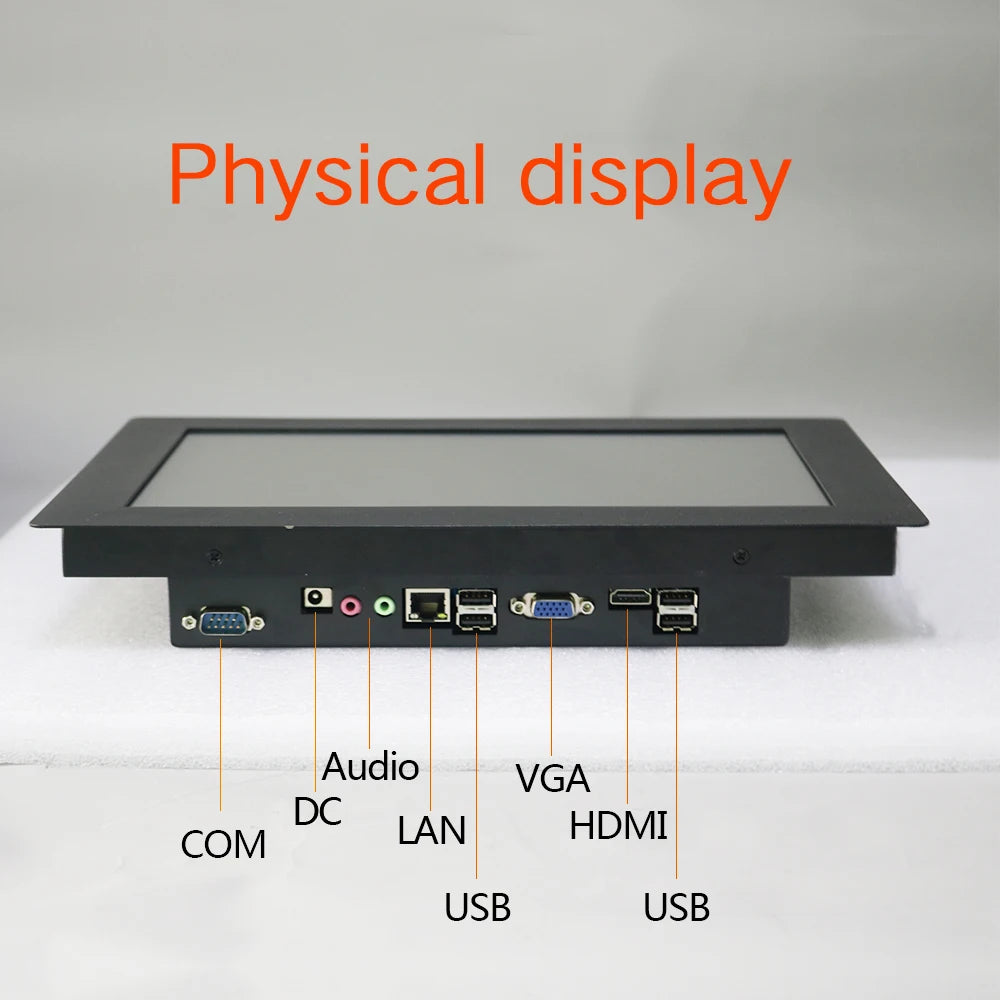

Product interface (support customization)
1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

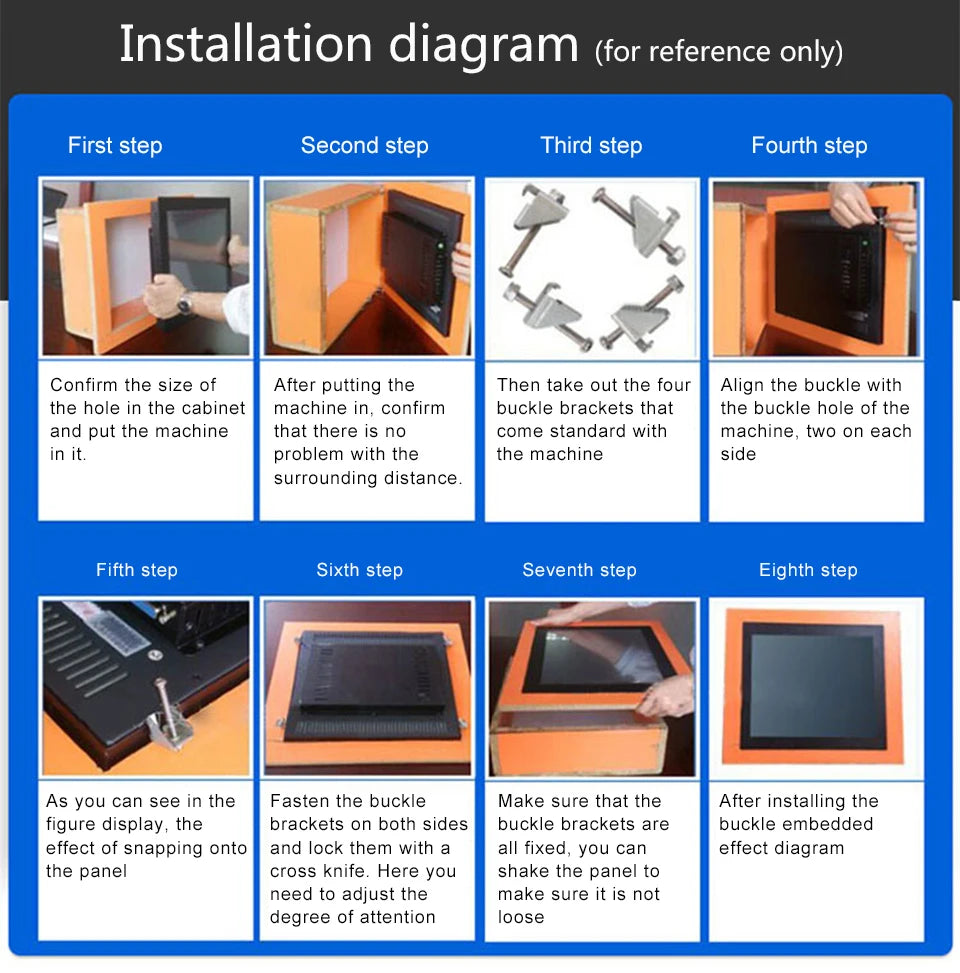

Installation Mode
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.

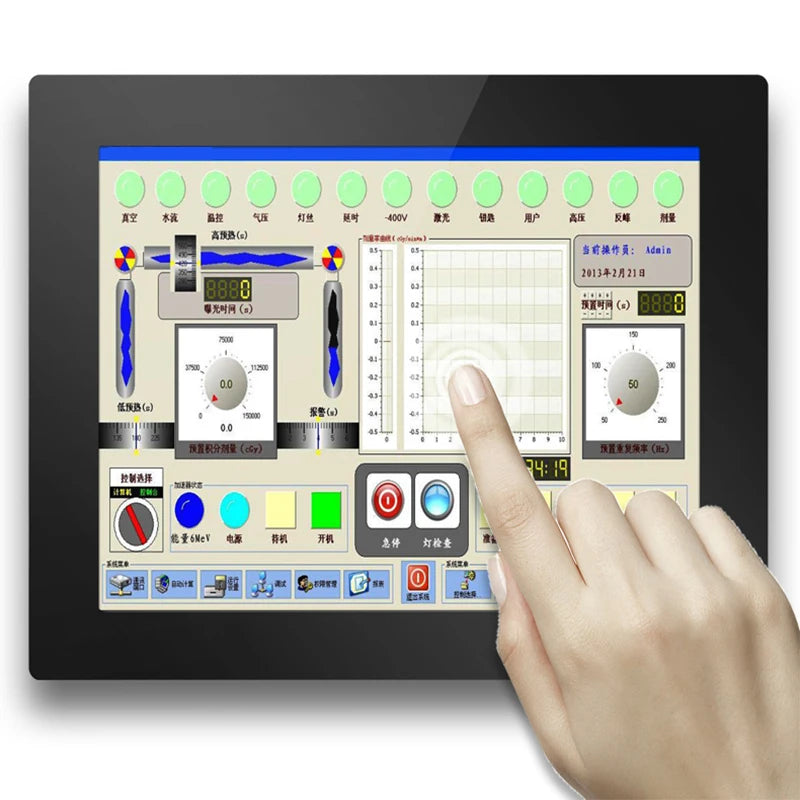

Sensitive Touch Rapid Response
Resistive touch times > 35 million times, backlight life 50000h
Industrial-grade custom motherboard
A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.
The machine runs stably
24/7 stable operation

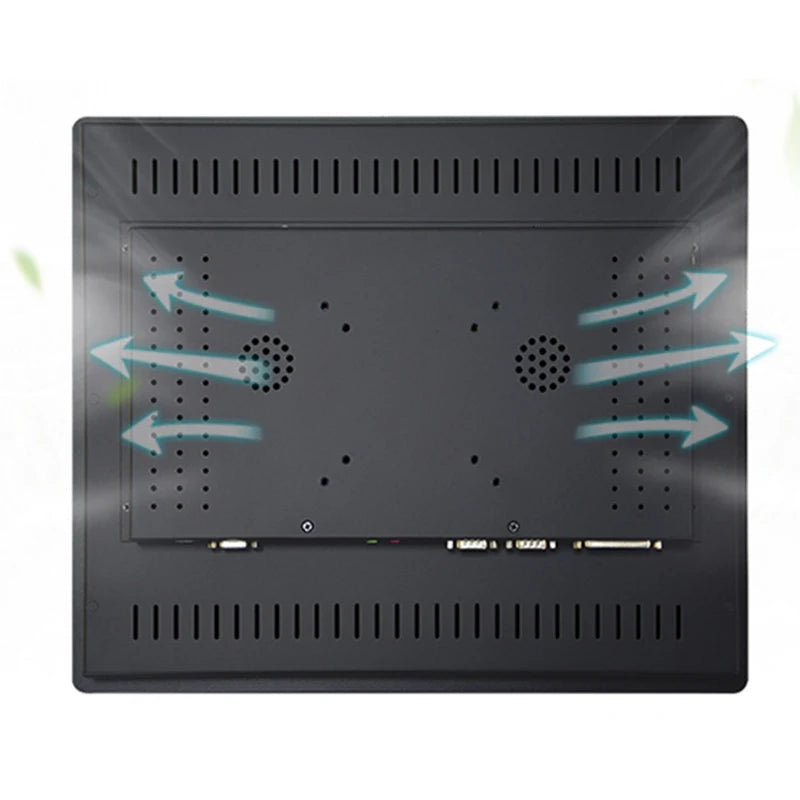

Efficient work for a long time, fast cooling
Metal case, resist to high and low temperature environment
Industrial cold-rolled sheet metal shell, cold and high temperature resistance, as low as -20 ℃ ~ 60 ℃.
Can effectively adapt to stable work in harsh environments
About customization
Please contact customer service to state your needs.
Support logo, shell, color, function, interface and other customization, please contact us for the best price
Product application field display
Products are widely used in industrial control CNC industry, medical industry, factory production workshop,
Bank automatic ticket vending machines, supermarket advertising, video surveillance, etc.
