SPECIFICATIONS

Brand Name: GENIUSPY

Origin: Mainland China

High Definition: 5.0 Megapixels

Supported Operating Systems: Windows 98

Supported Operating Systems: Windows XP

Supported Operating Systems: Windows Vista

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Supported Operating Systems: Windows 2000

Supported Operating Systems: Windows 2008

Supported Operating Systems: Windows 2003

Lens (mm): 3.6mm

Lens (mm): 2.8mm

Lens (mm): 2.1mm

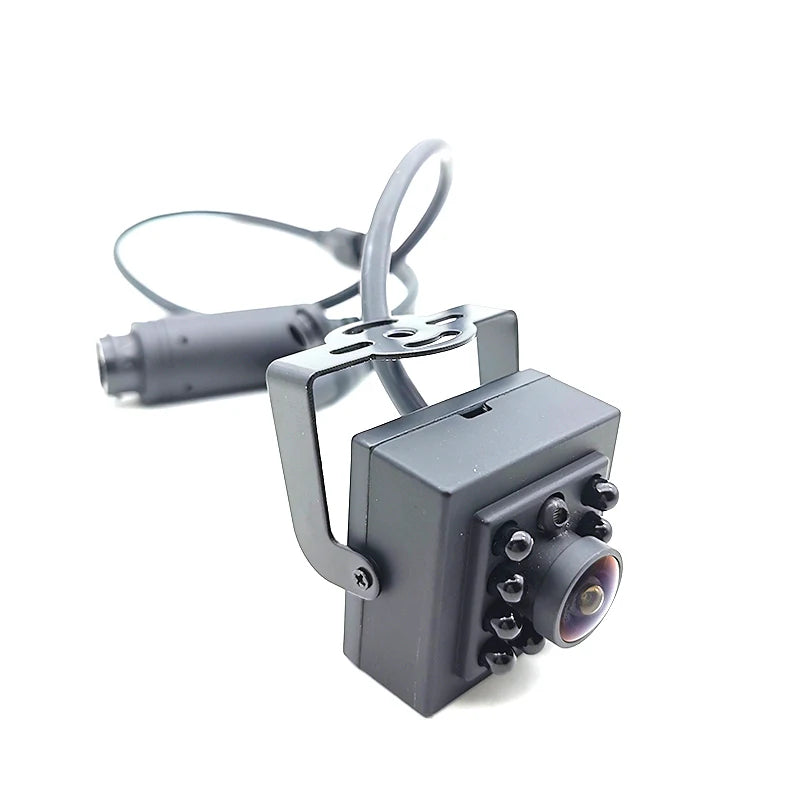

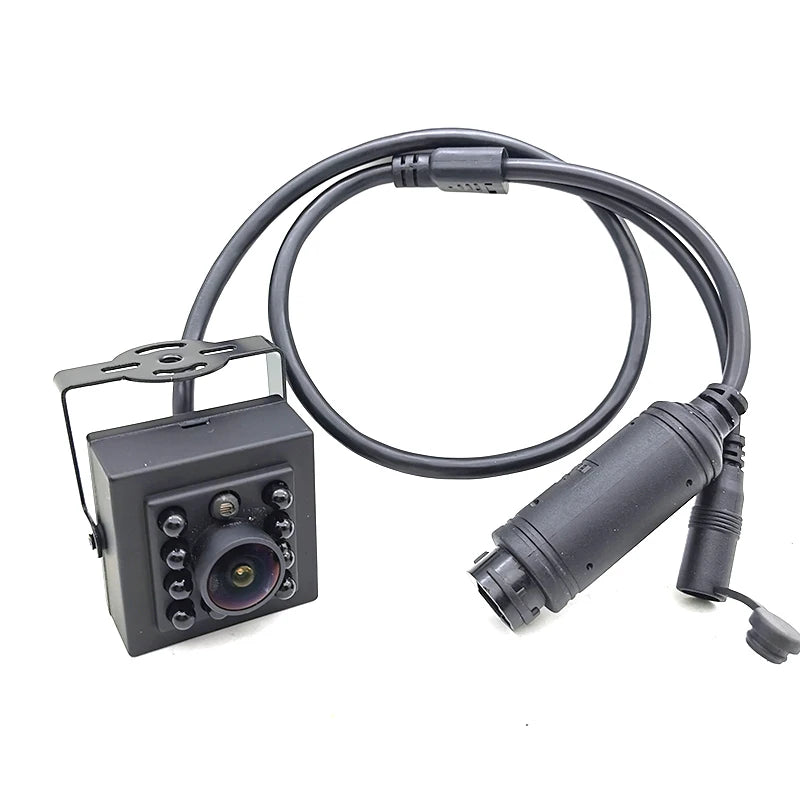

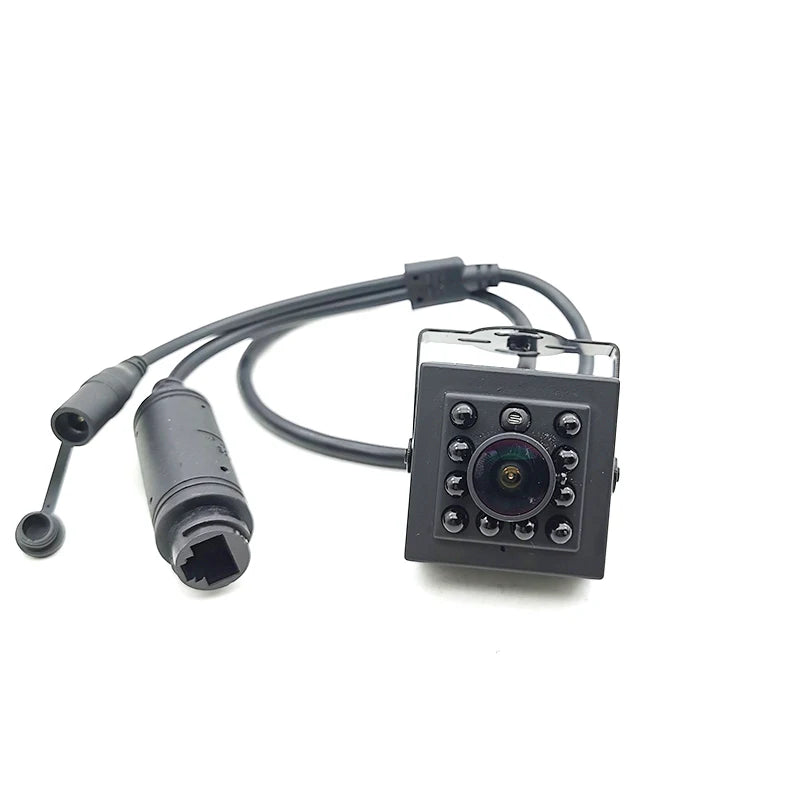

Style: Mini Camera

Connectivity: IP/Network Wired

Installation: Ceiling

Minimum Illumination(Lux): 0.01lux

Scene: indoor

Megapixels: 5MP

Storage: None

Video Compression Format: H.264

Video Compression Format: H.265

IR Distance(m): 5-8meters

Certification: none

Dimensions (L x W x D)(mm): 40*40mm

Color: black

Power Mode: Mains Electricity

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

is_customized: Yes

Model Number: GS-BNQ140CLA Series

Supported Mobile Systems: IOS

Supported Mobile Systems: Android

Smart home platform: other

Special Features: Vandal-proof

TF Card: None

Power Supply(V): 12V

Audio Output: None

Power Consumption(W): 3W

Sensor: CMOS

Sensor Brand: Sony/索尼

Power Supply: With POE

Viewing Angle : 90°

Sensor: uper illumination CMOS sensor

Video: H.264 h.265 compression

Resolution: 2MP 3MP 4MP 5MP 8mpOPTIONAL

Network: 1 x RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Support: ON VIF,POE p2p

Mobile Monitor: Support iPhone,,Android

power: DC 12V ,3W power consumption

size: 40*40mm

key: mini ir Ip Camera Poe

support: POE&940nm ir leds default ,build mic

4K Ultra HD Bird Nest Car Use POE Ip Cam P2P 4MP 5MP 8MP 940NM IR Led Night POE Mini CCTV Security POE Ir Ip Camera IR-Cut Audio

If it is used to observe the bird house, please note the approximate distance from the camera. Thank you!

NOTICE:

Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

if you have other requirement ,welcome contact with us free !

8MP 4K Feature

Supporting Face detection, Humanoid detectionn, and supports customization of other smart functions;

8.0MP HD Black light illumination resolution, clear and fine images;

Support 2D/3D noise reduction, digital wide dynamic;

Advanced H.265(Compatible with H.264) video compression, Super low rate, high definition quality of image;

Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;

Support ON VIF, access third party;

Support various mobile monitoring(iPhone, Android);

Features:

1. H.265/H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;

2. Color 0.1Lux;  B/W 0.01Lux;

3. 1 RJ45 Ethernet interface, 10/100M automatically adapting;

4. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;

5. Support ON VIF, and mobile monitoring;

7. Metal case.

Specifications:

	BNQ140CLA   / BNQ140CLA3M  / BNQ140CLA 4M/ BNQ140CLA5M   BNQ140CLA 8M
System structure	Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog
Sensor	2MP:1/3"  CMOS sensor color 0.01Lux’F1.2,black/white 0.01Lux’F1.2 3MP:1/2.7" SC2235 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 4MP:1/2.7" SC5239 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 5MP:1/2.8"  CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 8MP:1/2.7 SC8239 Cmos senor  cloor 0.1lux F1.2 black and white 0.01lux F1.2
Video compression	H.265/H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
Image output	2MP:Main stream:1920*1080(25fps), 3MP:Mail stream:2048*1536(20fps), 4MP:Mail stream:2560*1440(20fps), 5MP:Mail stream:2592*1944(15fps), 8mp:Main Stream:3840*2160p(15fps)
Noise reduction	Support 2D/3D

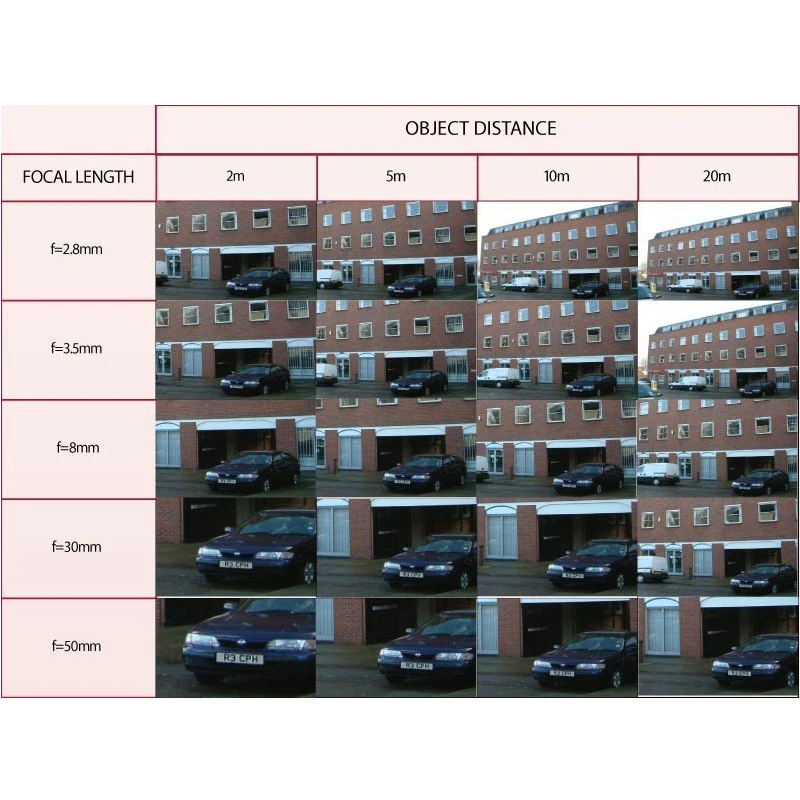

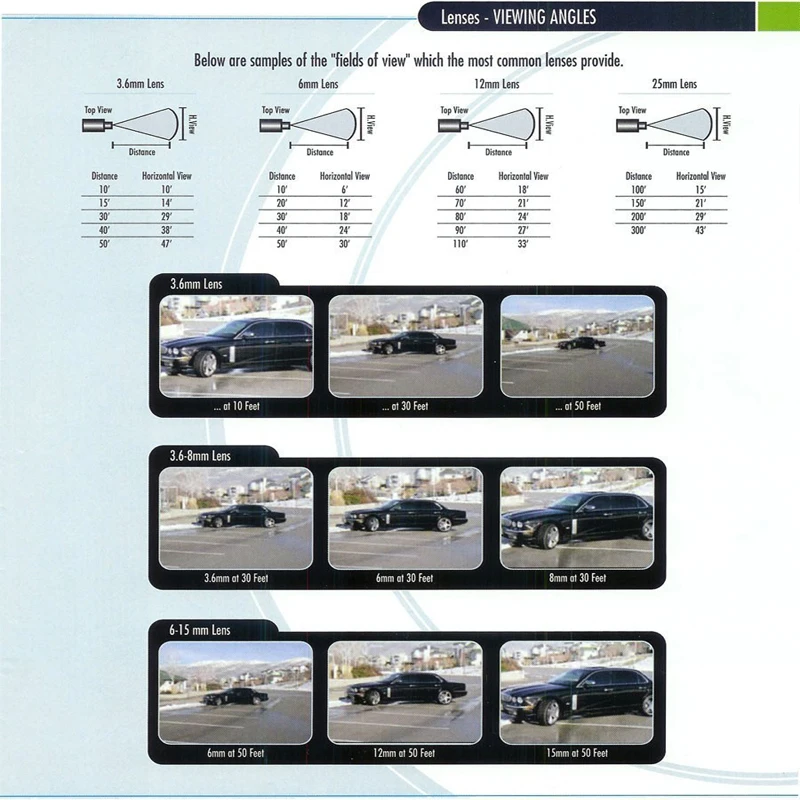

lens	3.6MM MP lens Default,(2.8mm.6mm optional)
Storage	Via PC/Mobile Phone/NVR With HDD
Light	10pcs 940nm ir leds
Wide dynamic	Support digital
Network interface	1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Singal interface	One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
Auto iris	No
SD Card	NO
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C  high temperature stable and reliable testing (including mounted machine testing)
Other function	NO
ON VIF	Support
Mobile monitoring	Support multiple mobile monitoring(iOS,Android)
Power	DC12V
Dimension	40*40*15mm
Housing material	Metal Housing



8MP Chipset Specification as below:

(Does not include Power Adapter)

Note: " 12V" Please use  12 V 1A power supply, packaging does not include the power supply. if you need ,pls send us message !

We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.

 Q & A

1, IP camera default IP address:192.168.1.10

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

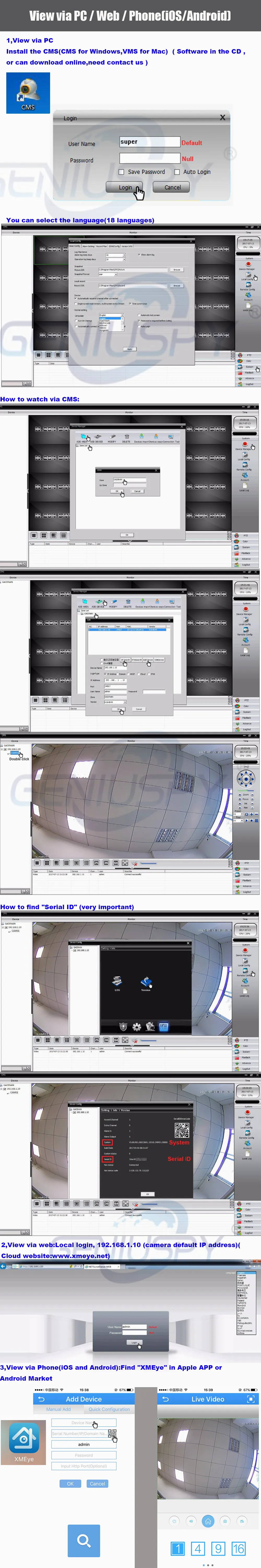

2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

on vif 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port  25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support on vif protocol.

Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

     If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

7.

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “  even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

Package contents:

1 x Camera,1 x English User Manual,1x Bracket

Note:

Software will be sent to your emails !pls contact with our SALES team if you need !

Note: If you need POE power supply, select the ADD POE option. If you do not select POE power supply, it is normal cable

Advanced H.265 Video Compression

Working With NVR For 24/7 Reliable Recording
