SPECIFICATIONS

Brand Name: APBLP

Origin: Mainland China

Type: Indoor

Frequency Range: VHF(172-240Mhz)/ UHF(470-860Mhz)

Certification: CE

Package: Yes

LNA high gain: 37DBI

Material: ABS Plastic

Band: UHF, VHF

Receiving signal: ATSC, DVB-T, DVB-T2, ISDB

Working temperature: -45-85℃

Maximum Range: 350 Miles(37DBI)

Power consumption: 20mA

Voltage: 5V

Model: Indoor-Digital-TV-Antenna-4K-Amplified

Features: 4K Digital HD, 1080p Digital HD, Built-in Amplifier, Gain Booster, HD

Impedance: 75Ω

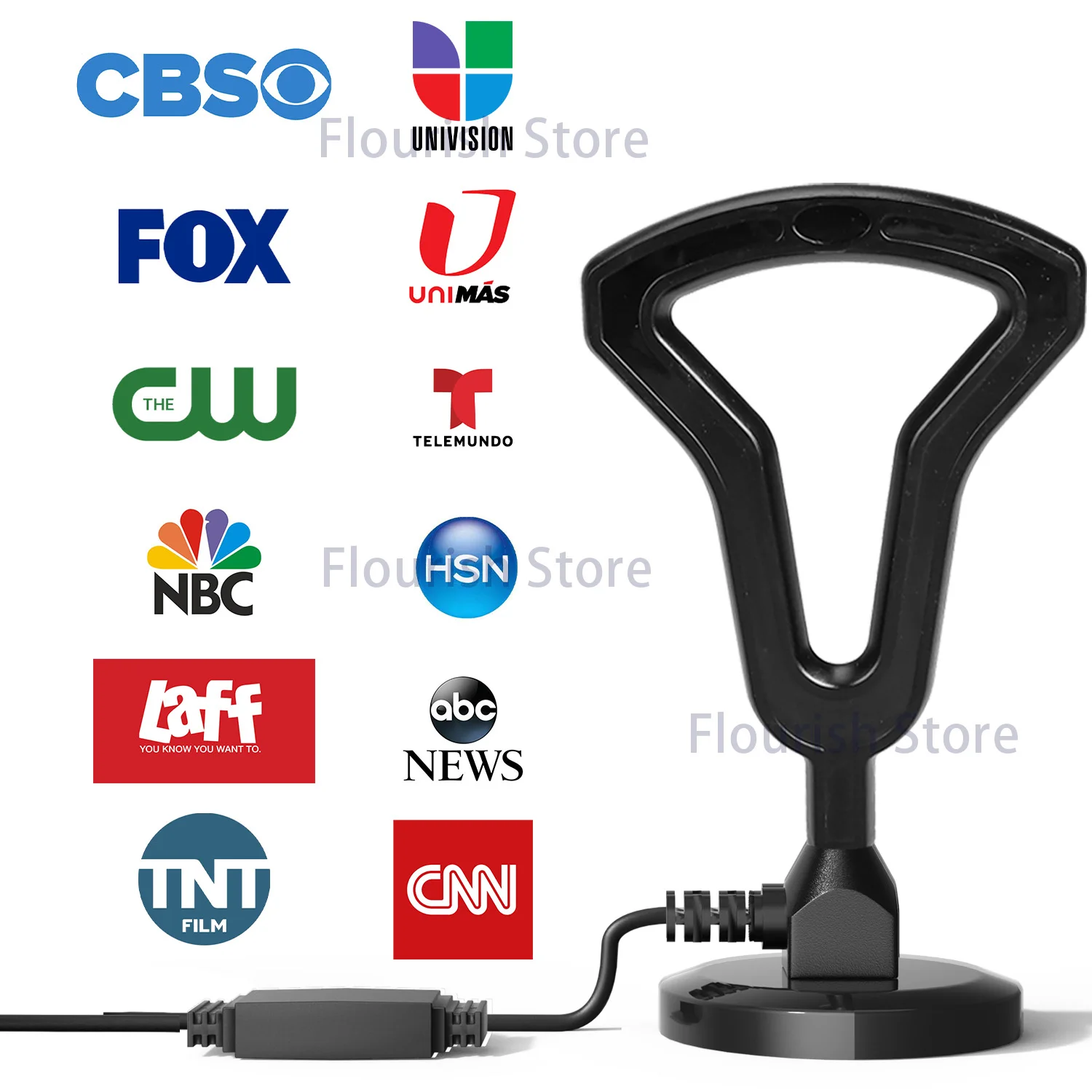

Free HD Channels: ABC, CBS, NBC, PBS, Fox, and Many More

350 Miles Digital TV Antenna Indoor Signal Booster HDTV 1080P 4K W/Magnetic Base

Description:

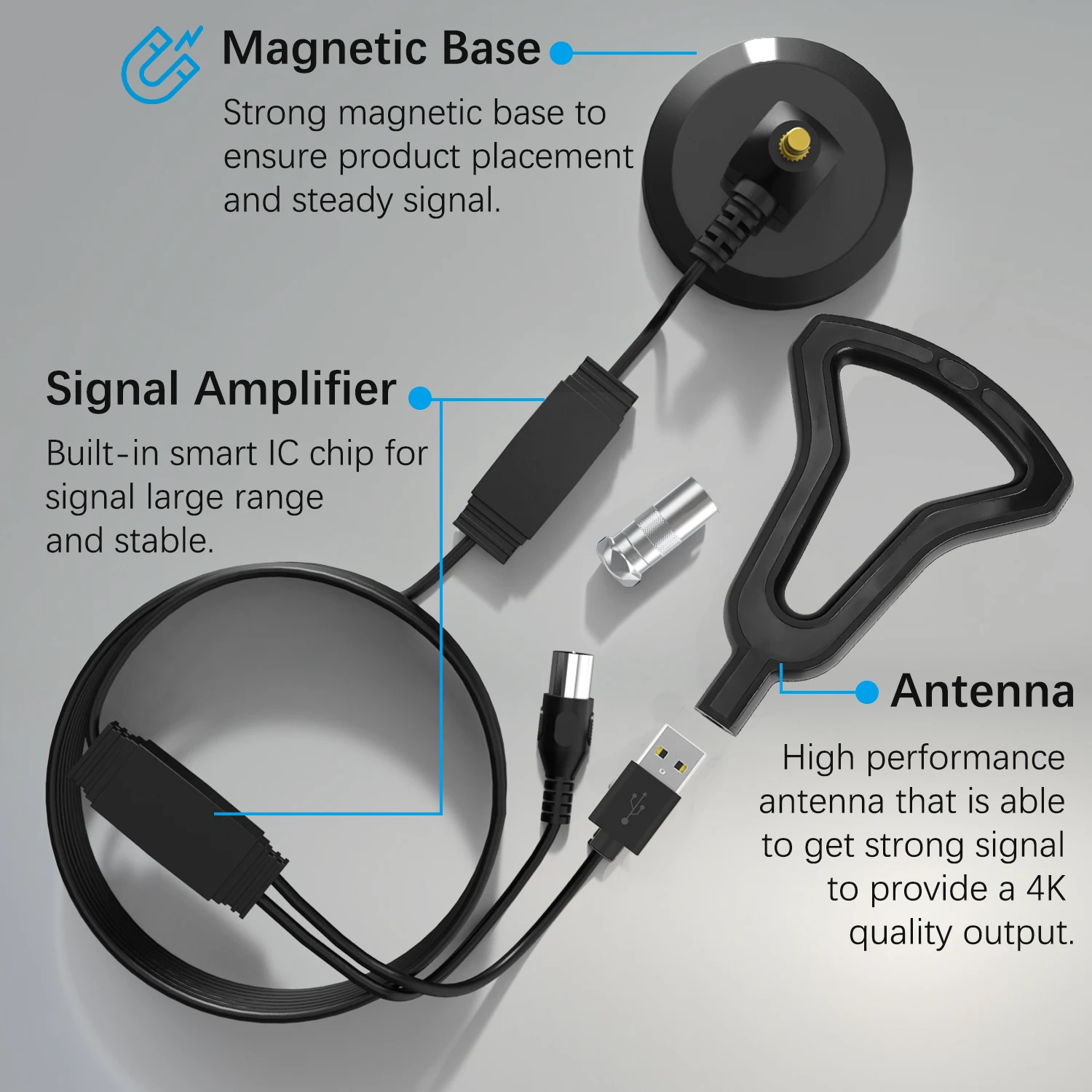

This magnetic base HDTV antenna helps you get stronger HDTV signal to watch more HD TV programs and videos.

The high gain 39dBi antenna gives you a stronger signal with high sensitivity to receive programs of better quality.

And built-in high frequency ensures the stability and smoothness of signal, thus providing you with a more brilliant watching TV enjoyment.

Features:

1.Adopting high gain 37dBi antenna to boost signals for HDTV.

2.Made of high-quality material, signal transmission is faster and more stable.

2.High frequency of VHF(172-240Mhz)/ UHF(470-860Mhz) with high sensitivity plus high gain 37dBi ensure the stability and smoothness of signal transmission. Give you a great watching TV enjoyment.

4.This antenna receives multiple kinds of signals, including ATSC, DVB-T, DVB-T2, ISDB. It is compatible with 720P, 1080i, 1080P/ ATSC. Enabling you to enjoy HD videos.

5.This high gain antenna widens the signal receiving/ transmitting range to 350 miles, which allows you to get more signals, thus more HD TV programs.

6.This magnetic base TV signal amplifier antenna supports plug and play. No need for drive or software.

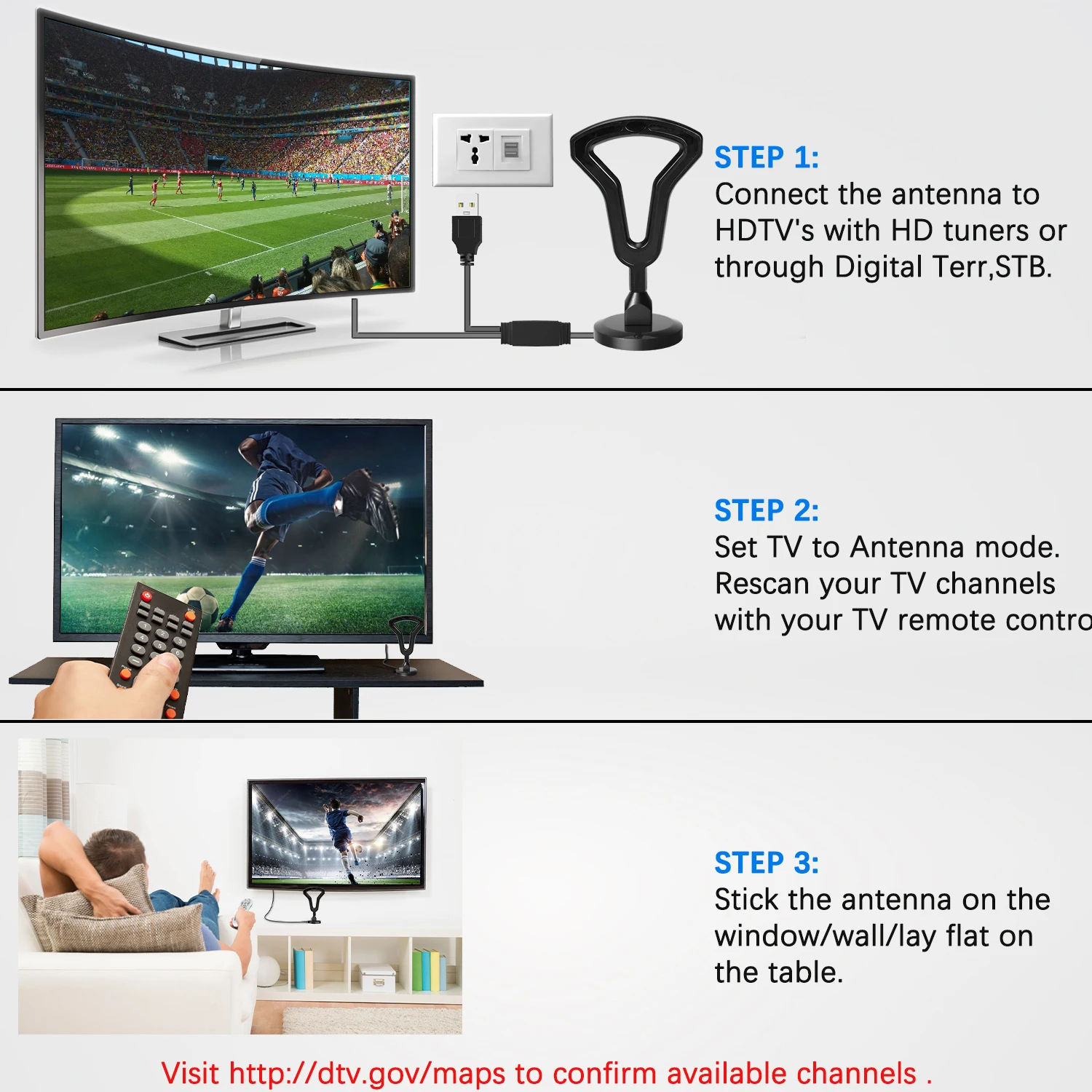

How to Use:

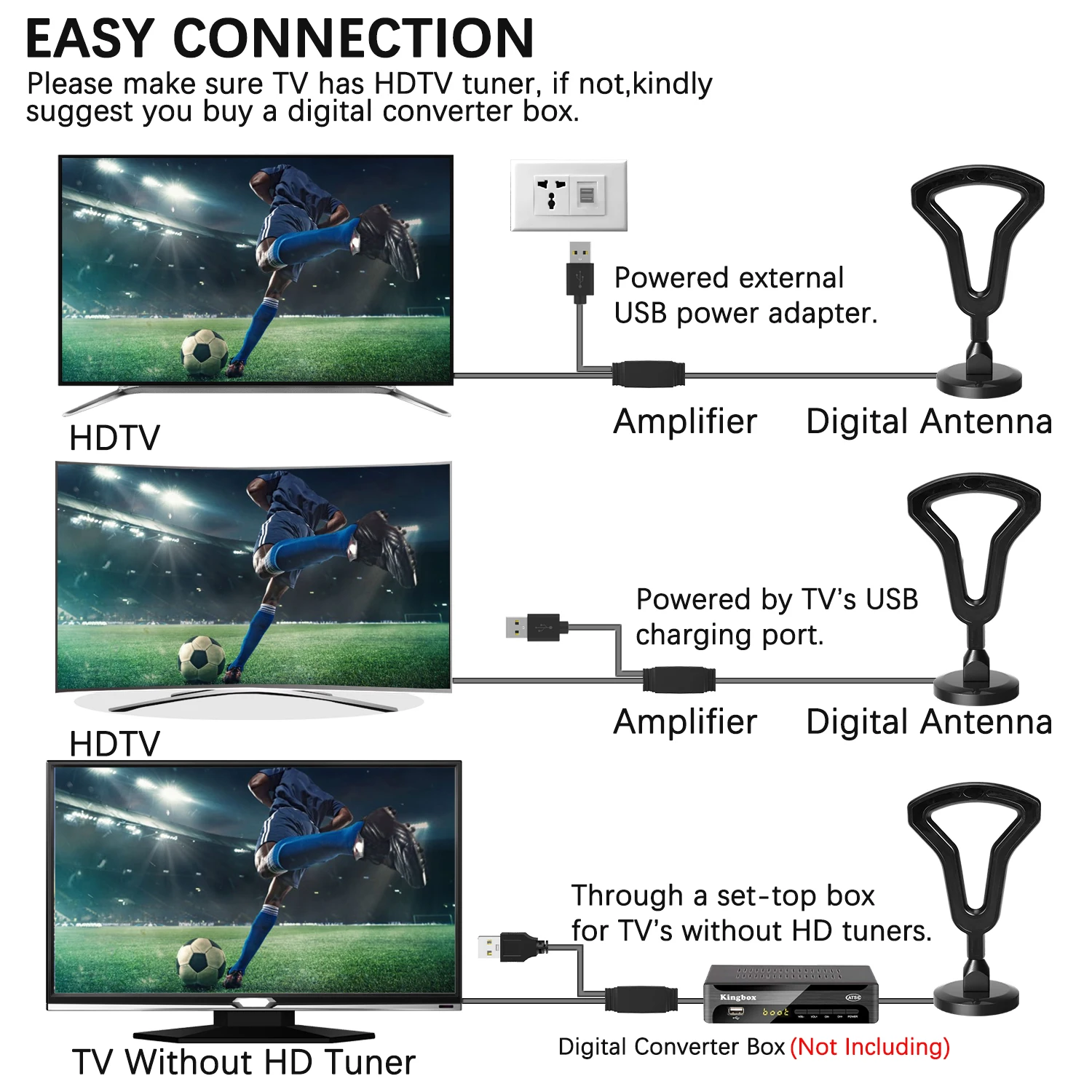

Step 1: connect the end(f-male) of an attached coaxial cable to the ANT/IN connector on the back of the TV or DVB-T tuner.

Step 2: In the TV's setup menu, set the tuner mode to "Antenna" or "Air". for more detailed instructions, please refer to your TV manual.

Step 3: In the Tv's setup menu, set TV to "scan" for channels. this can sometimes be listed as auto-program, auto-scan, channel search or channel scan. consult the TV manual for detailed instructions.

Step 4: if the reception is sporadic, try moving the antenna to another location and rescanning the TV until the optimal position is found.

Step 5: fix the antenna at the optimal position you found.

Specification:

Type: DVB-T2 Antenna

Material: Metal

Working frequency: VHF(172-240Mhz)/ UHF(470-860Mhz)

Impedance: 75Ω

LNA high gain: 37dBi

Signal range: 350 miles

Receiving signal: ATSC, DVB-T, DVB-T2, ISDB

Compatibility: 720P, 1080i, 1080P/ ATSC

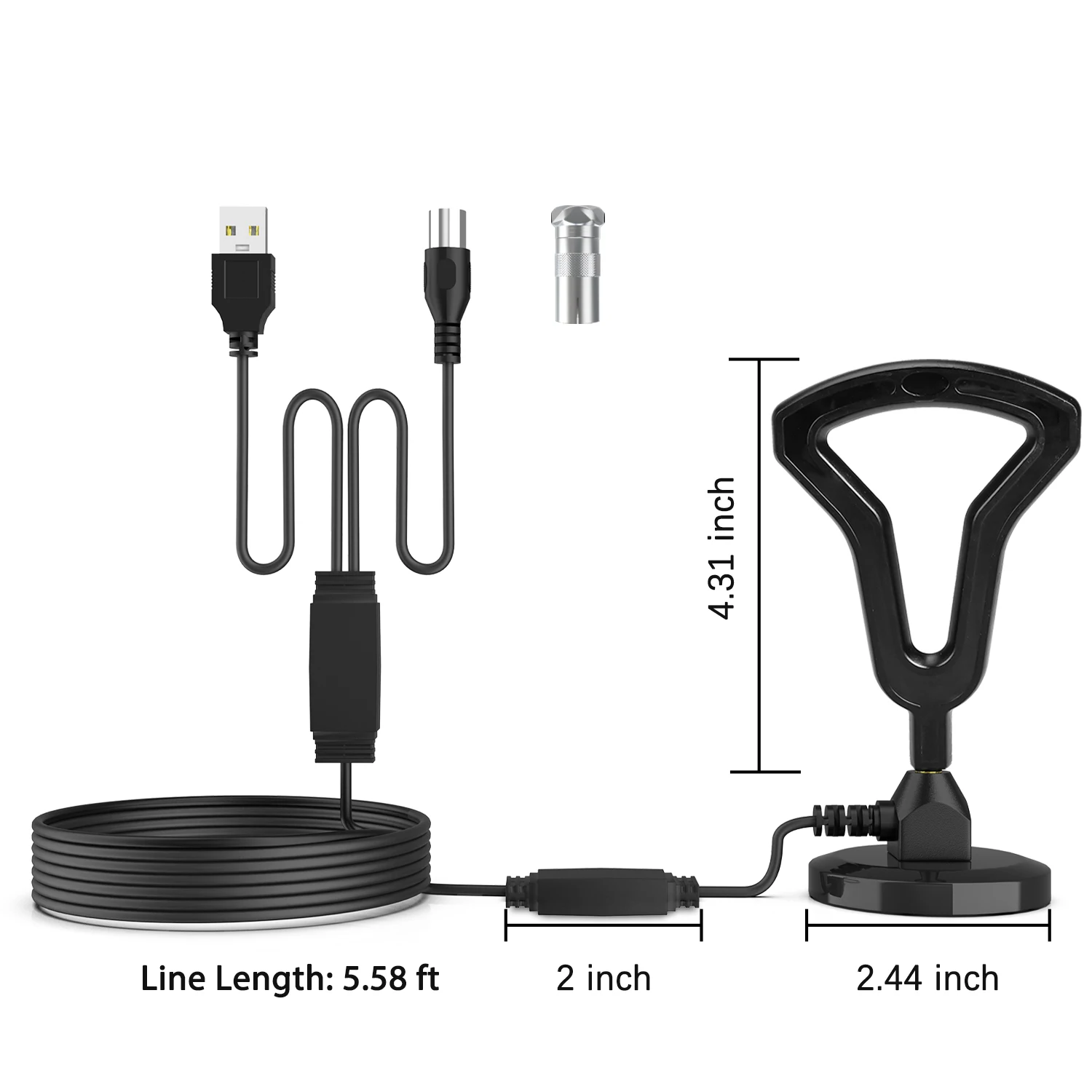

Cable length: approx 16.4ft

Connector: F male

Voltage: 5V

Power consumption: 20mA

Working temperature: -45-85℃

Storage temperature: -45-85℃



Note:

1.Placing the antenna higher or close to/in a window may result in better reception. You must rescan whenever you move the antenna.
2.lf you use a flat HDTV,please go through your TV manual to make sure your TV comes with buit-in tuner for freeview.
3.You need to retune your freeview TVs and digital receiver from time to ensure you are reserving all available services.retuning takes only a few minutes and can be done with your remote control.
4.TV reception capacity on the distance among your home,transmitting tower and surrounding environments.Areas with large obstructions, such as valleys and mountains, will reduce the effective range.
5. The antenna can pass 2~3-storey wall, if the tower over it, maybe the antenna signal have some interfere with it, Keep the TV antenna away from those devices that consume a lot of power, such as air conditioners elevators, hair dryers and microwave ovens.
6.The antenna can support 1080P, 720P and 4K, ASTC , and so on,  but that is not all of tv  set and living place can get it, because,  many many United States customers living in countryside or Suburb, they don't know how to use it, and put the antenna very nearly in Magnetic products, that is also interfere with signal, we should write the antenna list far away from Magnetic products and put the antenna in the window, and facing the outside place,
7. The TV must be a digital TV to use this digital antenna. If it is an analog TV, a digital converter box (set-top box) is required.

Q:What if I can't receive the signal with the TV antenna, or the antenna can't reach the expected effect?

A:1.Check if the antenna is properly connected to the HDTV or a third party HDTV receiver, such as a TV set-top box.
2.Rescan the channel and set the mode to Antenna or Air in the TV setup menu, please refer to the TV manual for detailed instructions.
3.If you previously saw a snowy (but watchable) image on an analog TV channel, you may not have a strong enough signal to display this new format. Try repositioning the antenna in a different location, sometimes moving it just a few feet can make a difference.

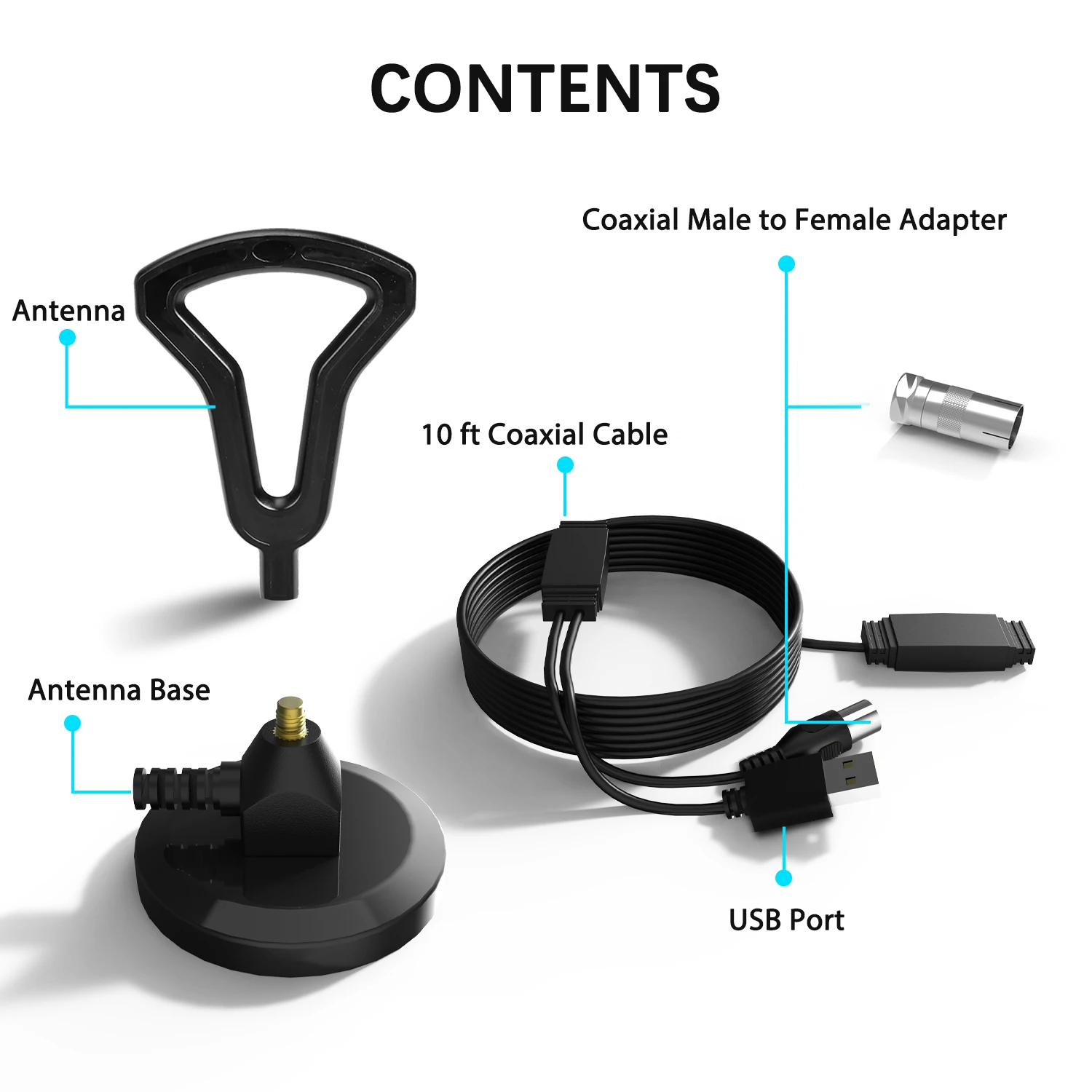

Package Included:

1 x Antenna

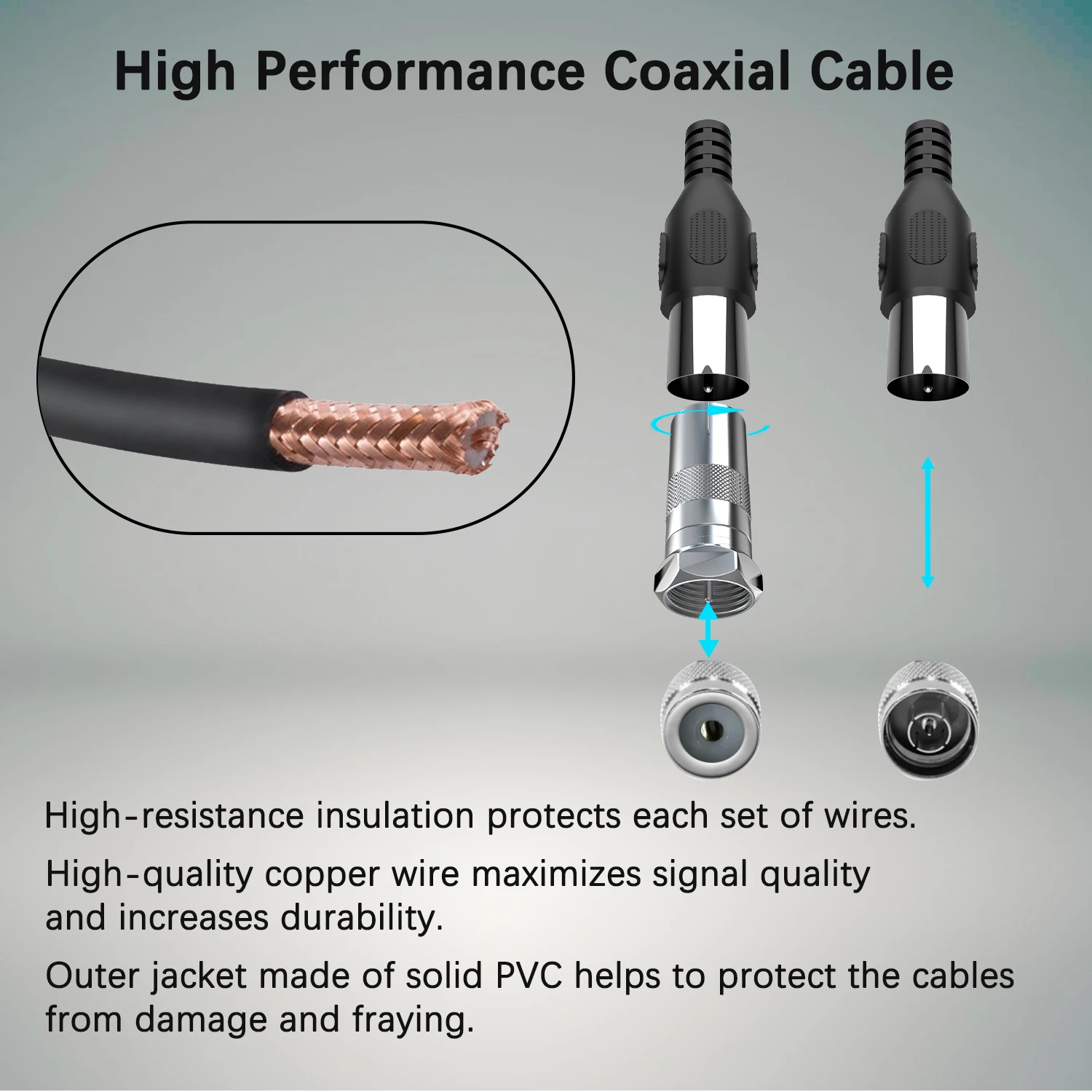

1 x Coaxial cable
1 x Magnetic Base
1 x Adaptor
