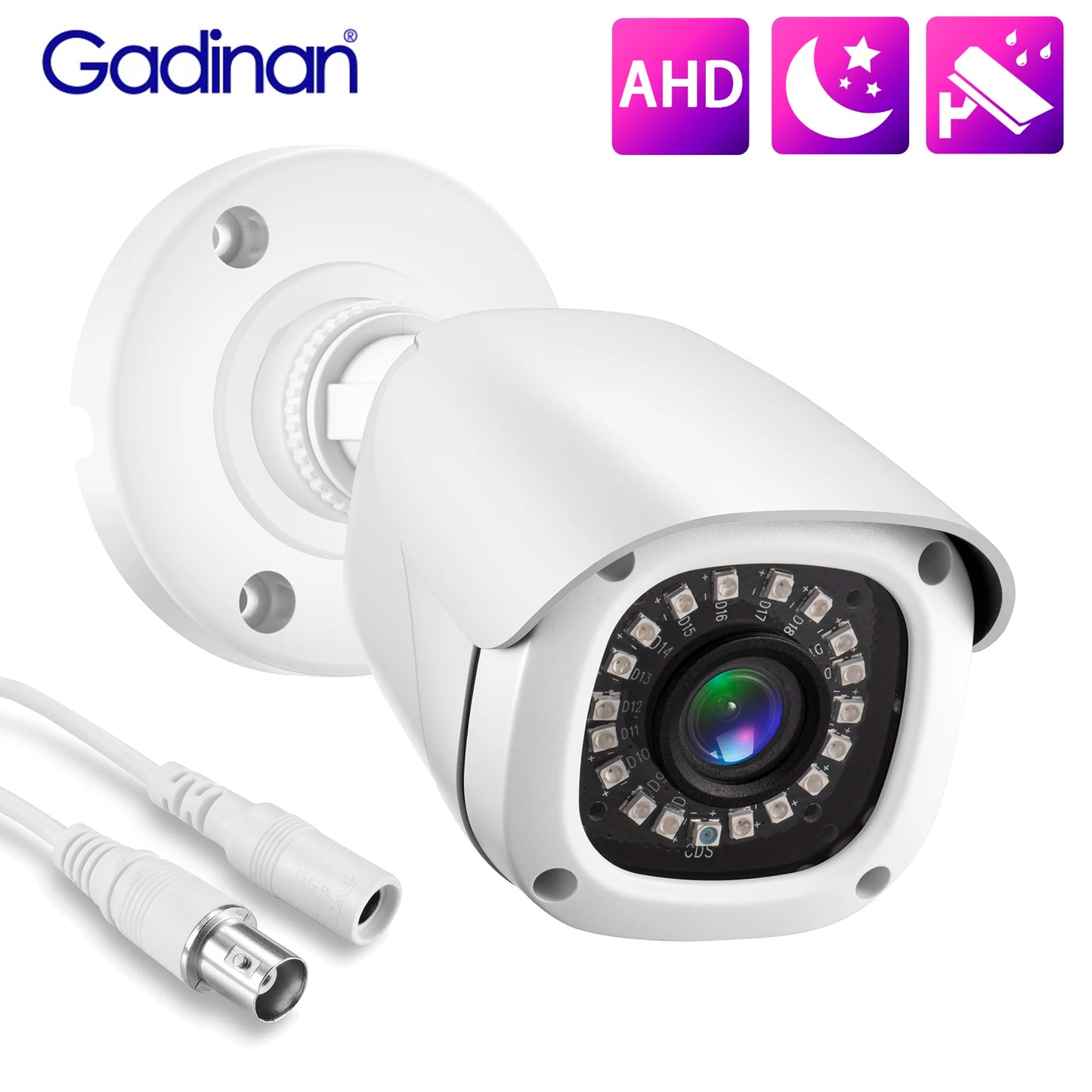

Gadinan HD AHD Camera - 720P/1080P/5MP, Infrared Night Vision, Outdoor Bullet CCTV

Gadinan HD AHD Camera - 720P/1080P/5MP, Infrared Night Vision, Outdoor Bullet CCTV

Excellent! 100s of Happy Customers

Regular price $97.99 USD
Regular price $136.85 USD Sale price $97.99 USD
Sale Sold out

Sensor Size: 5MP / NTSC / 6mm
Signal System: 5MP / NTSC / 6mm
Focus: 5MP / NTSC / 6mm

In Stock, Ready To Ship

Free Shipping for US

30-Day Returns


SPECIFICATIONS

  • Brand Name: Gadinan
  • Origin: Mainland China
  • High Definition: 5.0 Megapixels
  • Lens: 3.6mm
  • Style: Bullet Camera
  • Connectivity: Closed System/CCTV Wired
  • Installation: Wall Mounted
  • Minimum Illumination: 0.01 Lux
  • Scene: Indoor and Outdoor
  • Megapixels: 5MP
  • Video Compression Format: H.264
  • IR Distance: 5-20 meters
  • Certification: CE
  • Dimensions: 16.6 x 6.5 cm
  • Color: White
  • Model Number: H3AHD
  • Supported Mobile Systems: Android, iOS
  • Smart Home Platform: Other
  • IP Rating: IP66 (Waterproof/Weatherproof)
  • Power Supply: DC 12V
  • Power Consumption: 3W
  • Sensor: CMOS by SmartSens
  • Viewing Angle: 85°
  • Feature: AHD (Analog High Definition)
  • IR-CUT: Auto Switch
  • IR Distance: Up to 25 meters

NOTE:This is AHD Camera , AHD Camera must use AHD DVR to make it working ! Don't support Analog DVR /NVR, it cann't directly connect to the TV/LCD monitor,please take notice !!!


Why AHD?

As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?

Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.


How AHD can be beneficial to us?

• Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a    full consideration to users’ operation habit.

• Megapixel & uncompressed image quality.

• Long range & non-latency reliable video transmission without additions of relay devices.

• Strong anti-interference capability & solid interface protection. Free of high-frequent electromagnetic radiation; constant signal transmission and display without  problems as frame drop and lock loss occurred.

• An open analog HD transmission system established and evolved industry chain developed to sustainably improve the technical standard.


High Quality Night Vision Smart Infrared Cut Filter (ICR)
Camera has a very good night image quality. Infrared Cut Filter to ensure the highest quality images - day and night.

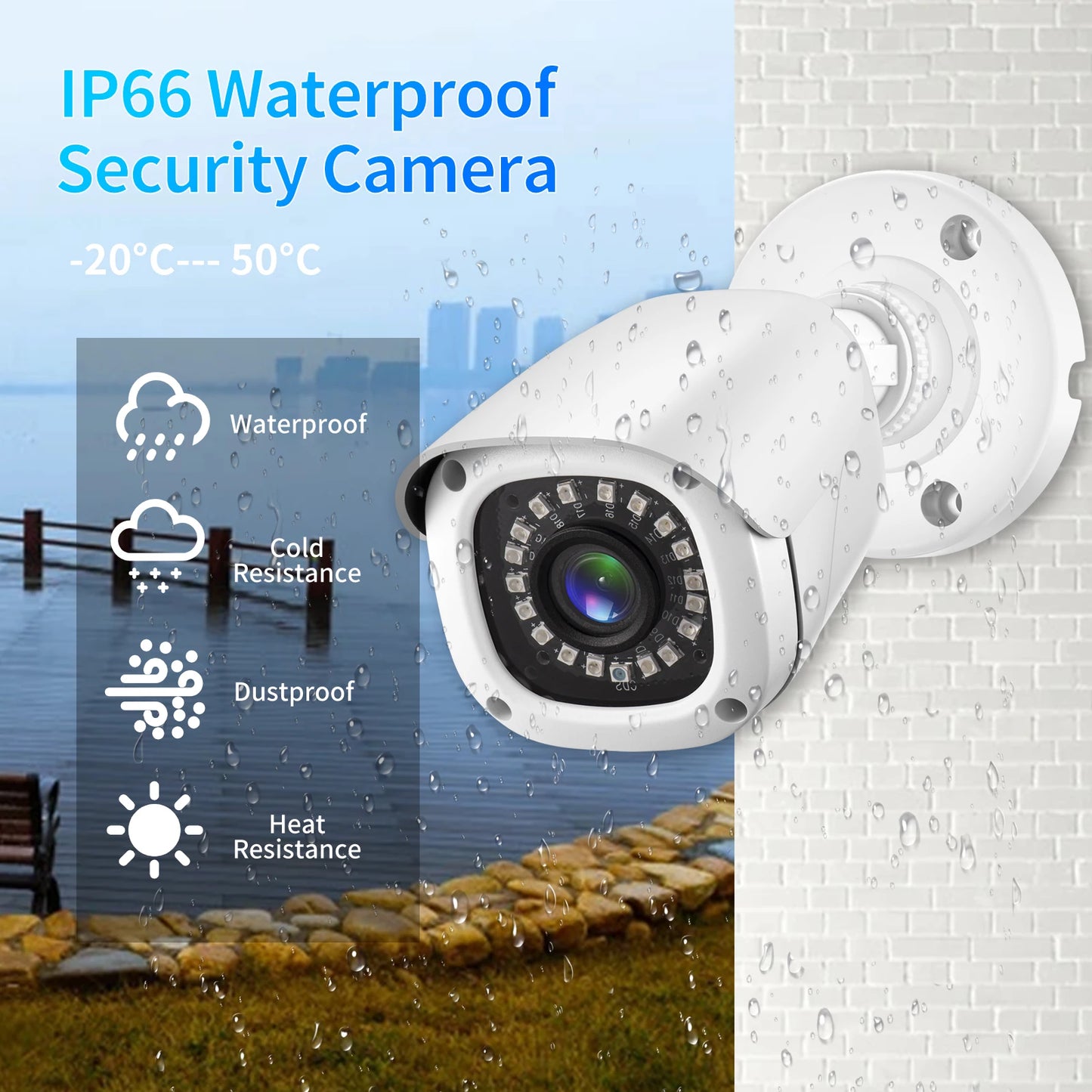

Waterproof Security Camera
Camera can suit for both outdoor and indoor usage.

Suitable for a variety of places

Locate incident Video with Smart Playback

You can freely playback to any specific moment on the timetable of your recordings and enjoy it on a beautiful intuitive interface

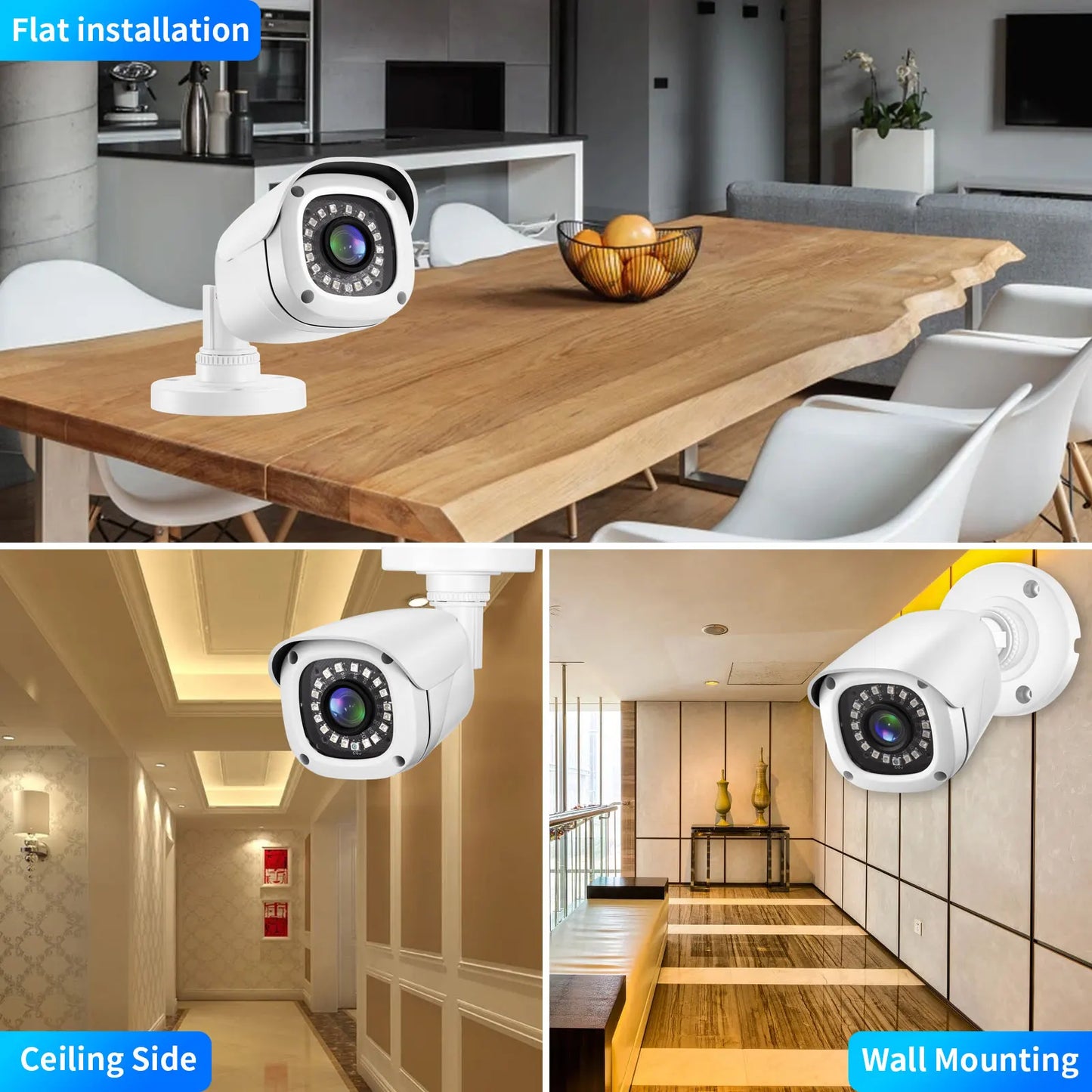

Ceiling and Side

Very important!!!

This is AHD Camera , AHD Camera must use AHD DVR to make it working ! Don't support Analog DVR /NVR, it cann't directly connect to the TV/LCD monitor,please take notice !!!

Description

1. AHD 720P,1080P,5MP

2. 2.8mm,3.6mm,6mm HD lens optional

3. Color CMOS Sensor,  ICR

4. ABS plastic housing,bullet camera outdoor indoor use

5. 18pcs IR leds light , 5-25M Max IR distance


Model

AHD 720P,1080P,5MP

Sensor

CMOS sensor

Minimum Illumination

Color:0.01Lux,(F1.2,AGC ON),0Lux with IR

Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR

Photosensitive Resistance

1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage

Shutter

1/50(1/60) seconds to 1/10,000 seconds

Day and Night Function

Support IR-CUT

Infrared light

18pcs IR Leds

Lens

2.8mm/3.6mm/6mm/8mm

Synchronous Mode

inter-sync

Noise-signal Ratio

>58dB

Temperature and Humidity

- 10’C ~ 60’C, humidity is less than 90% (no condensation)

Power

DC12V±10%

Consumption

<5W

Dimension

16.6*6.5cm

Housing material

ABS plastic


Packaging included:
1xAHD Camera(DC 12V Power supply not included)

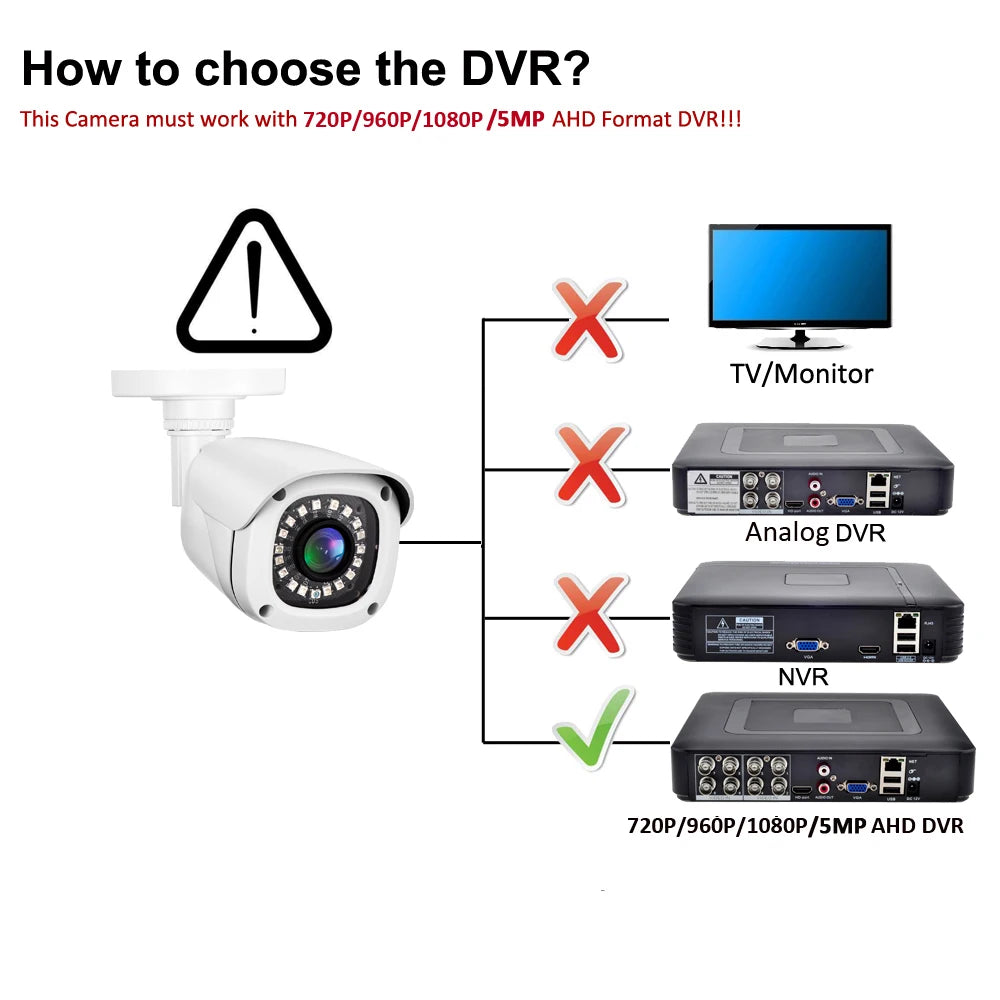

Note:if you buy AHD 5MP camera, make sure your DVR is AHD 5MP DVR.

AHD camera must be connected to AHD DVR, not analog 960H DVR or TV monitor directly.
