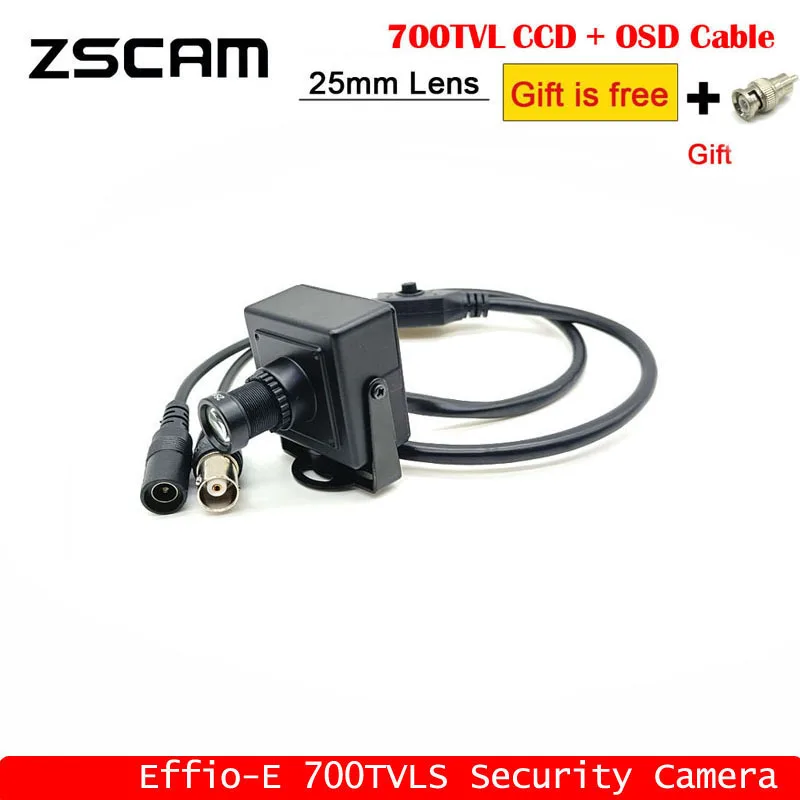

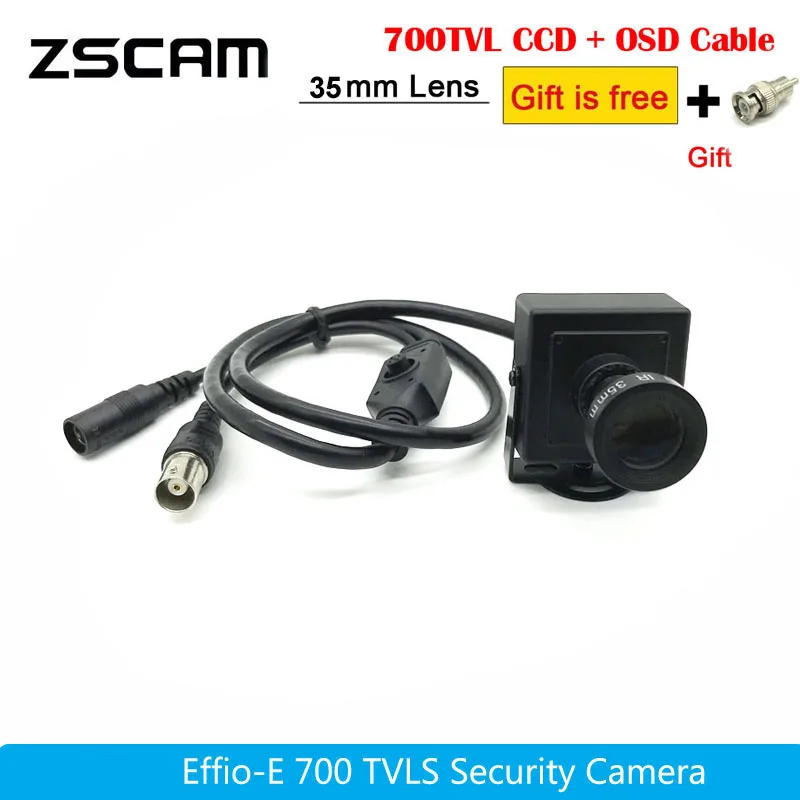

Mini Overtaking Car Camera High Resolution CCTV CCD Effio-E 700TVL 25mm/35mm Long Focal Length Lens Security Box OSD Cam

Mini Overtaking Car Camera High Resolution CCTV CCD Effio-E 700TVL 25mm/35mm Long Focal Length Lens Security Box OSD Cam

Excellent! 100s of Happy Customers

Regular price $238.99 USD
Regular price $333.83 USD Sale price $238.99 USD
Sale Sold out

Color: Camera And Bracket / 35mm Lens / NTSC
Bundle: Camera And Bracket / 35mm Lens / NTSC
Signal System: Camera And Bracket / 35mm Lens / NTSC

In Stock, Ready To Ship

Free Shipping for US

30-Day Returns


SPECIFICATIONS

Brand Name: ZSCAM

Origin: Mainland China

Sensor Brand: Sony/索尼

Lens (mm): 25mm

Viewing Angle : 25°

Connectivity: Closed System/CCTV Wired

Storage: None

Video Compression Format: MJPEG

Alarm Action: None

Sensor: CCD

Supported Mobile Systems: None

Sensor Size: 1/3"

Model Number: ZSCAM-C25/ZSCAM-C35

Style: Box Camera

Horizontal Resolution: 700TVL

Installation: Normal

Audio Output: None

Certification: CE

ZSCAM Mini Overtaking Car Camera High Resolution CCTV CCD Effio-E 700TVL 25mm/35mm Long Focal Length Lens Security Box OSD Cam

Features:

1/3 Inch sony Effio-E
700 TVL High Resolution
Mini Illumination 0.01lux
Mini small size, Easy to use, Easy to Install

Specifications:
Image Sensor: 1/3"sony Effio-E PAL:4140+811 / NTSC:4140+810
Horizontal Resolution: 700TV Line
Pixel: PAL:752*582;NTSC:768*494
Minimum Illumination:0.01 Lux
Lens: 25 mm
Signal system: NTSC / PAL
Back Light Compensation Auto
Gamma  0.45
S/N Ratio: More than 48db (AGC-OFF)
Scanning System: 2:1 Internal
Synchronization System : Internal Synchronization
Shutter Speed: 11/50/60-1/12000 (second)
Video Output: 1.0Vp-p, 75 OHM
Power Supply: 12V DC
Operation Temperature -10C ~ 50C / 0F ~ 110 F
Dimensions:36.5*36.5mm
Weight:120g

Package:
1* sony Effio-E 700TVL CCTV camera with OSD Menu

What meaning "Effio"

"Effio" means "Enhanced Features and Fine Image Processor", and it is a sony signal processor which realizes high resolution, high S/N ratio and high color reproduction for security camera.

"Effio" Promises You No.1 Image Quality & Performance, Over 650TVL and it High-resolution processing. 700TVL camera which using Effio solution provide you with high quality image recording
Support OSD Language:
Chinese/English/Japanese/German/French/Russian/Portuguese/Spanish
