SPECIFICATIONS

Dimensions: 171x79x23mm

Brand: MFYYJX

Model: A8 welding-free model

Charging protocol: pd2.0

Charging protocol: PD3.0

Charging protocol: QC2.0

Charging protocol: QC3.0

Charging protocol: Other

Voltage: 12V

Voltage: 9V

Voltage: 5V

Manufacturer: DONGGUAN BOXING TECHNOLOGY CO., LTD

Smart Type: Other intelligence

Shell material: Plastic

Function: Flashlight

Cell Type: Cylindrical aluminum shell

Maximum output power: 22.5W

Rated capacity: 0mAh

Battery Type: 18650 battery

Tips: The price is the price of a power box, excluding batteries and other accessories. You need to purchase batteries separately. Flat 18650 lithium batteries (length 65MM), pointed flashlight batteries are not available (No. 5 and No. 7 batteries are also unavailable). You need to buy the battery in another store. You can use it only after you install the battery after buying it. Be sure to pay attention to the positive and negative poles when installing the battery, and it will burn out after being installed.

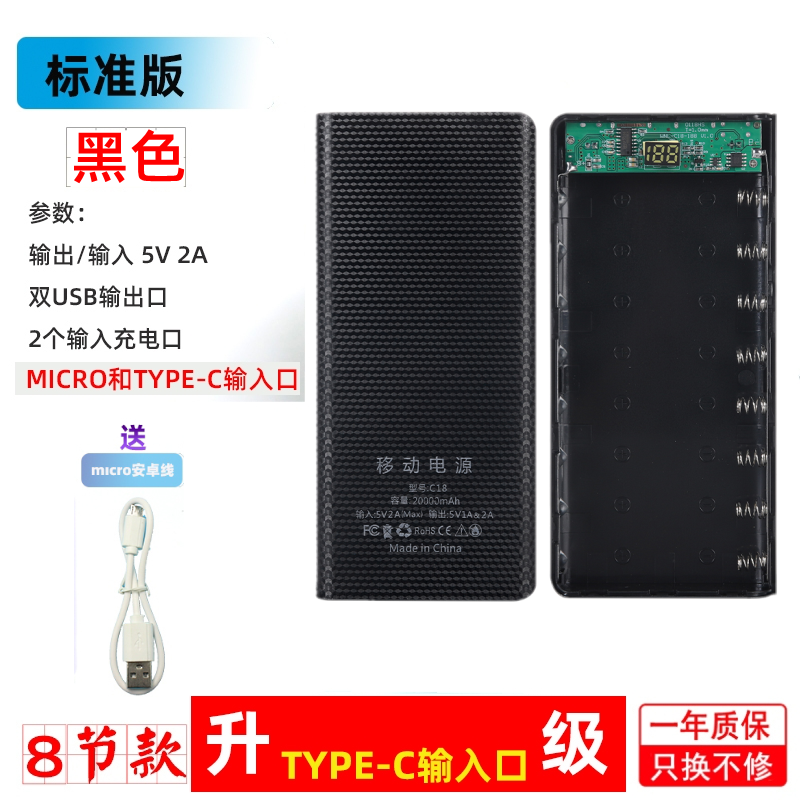

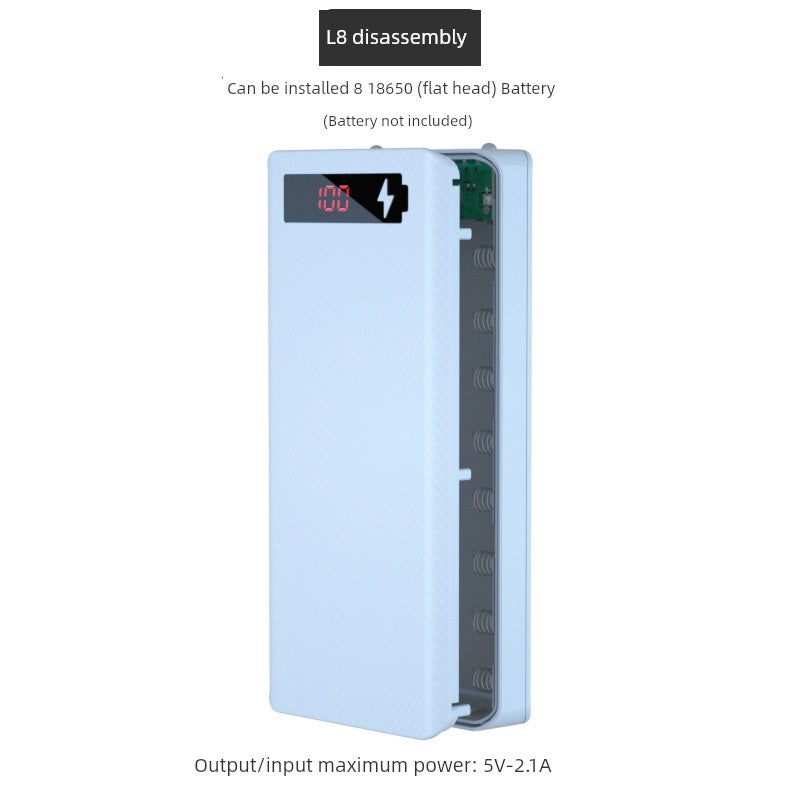

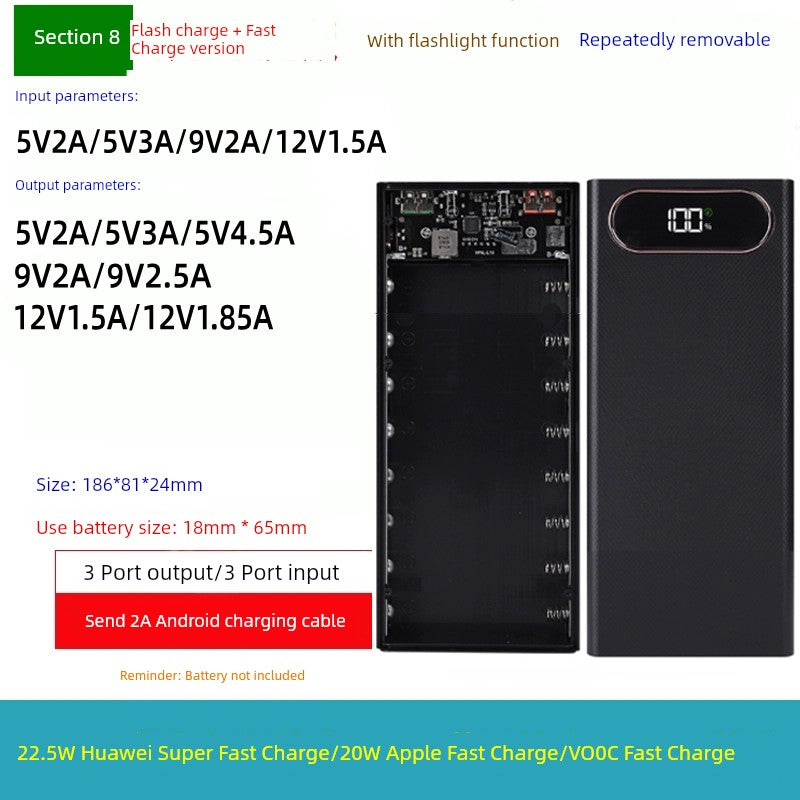

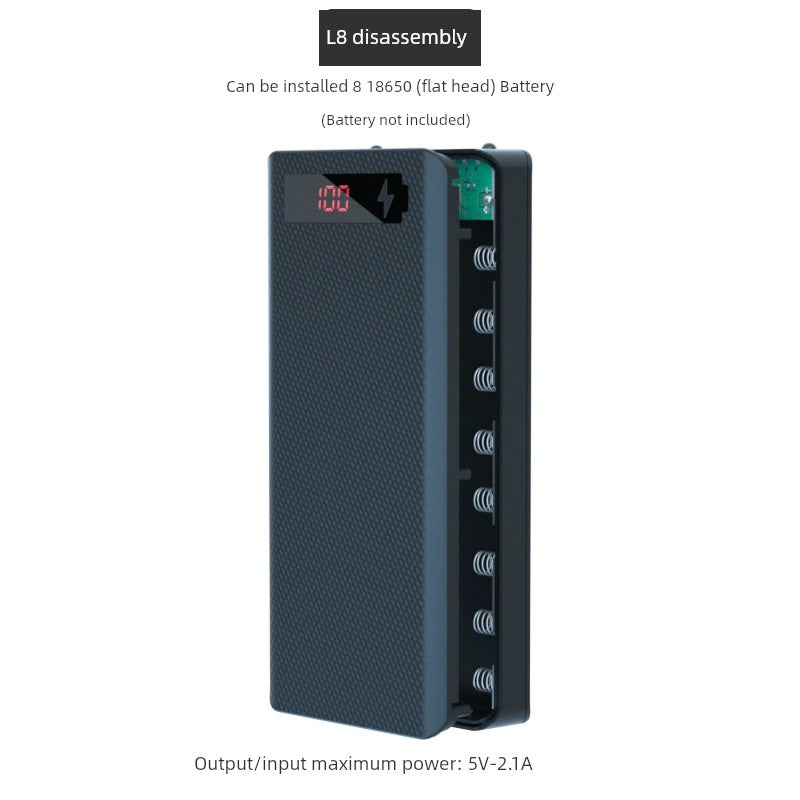

Buckle card non-removable 2 generation Standard 8 Section function introduction:
1. Two input ports: 1 MIRO Android input port 1 TYPE-C input port
input voltage: 5V (do not charge with charger with 9V and 12V voltage)
input current: 1A-2A (use 1A-2A current, do not use more than 2.2A current to charge)
2. Two output ports: output 5v 2A (two ports current 2A)

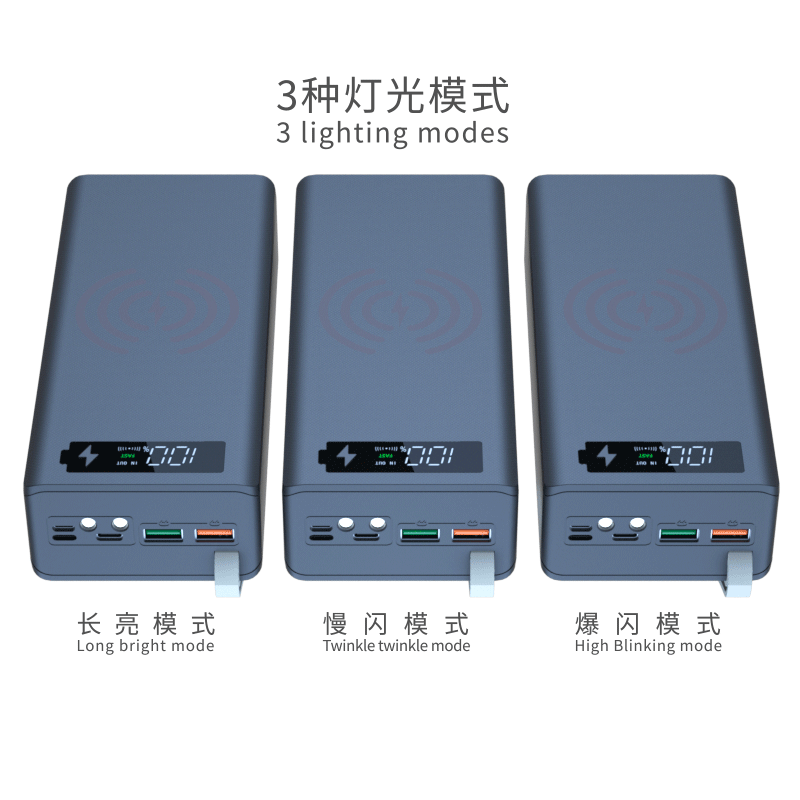

3. Double-click to turn on the flashlight.
4. Charge and discharge protection, lithium battery protection IC built in circuit board, overvoltage protection, overcurrent protection, Undervoltage protection, etc.
Dimensions: length 16.2cm * width 8.2 * thickness 2.2cm

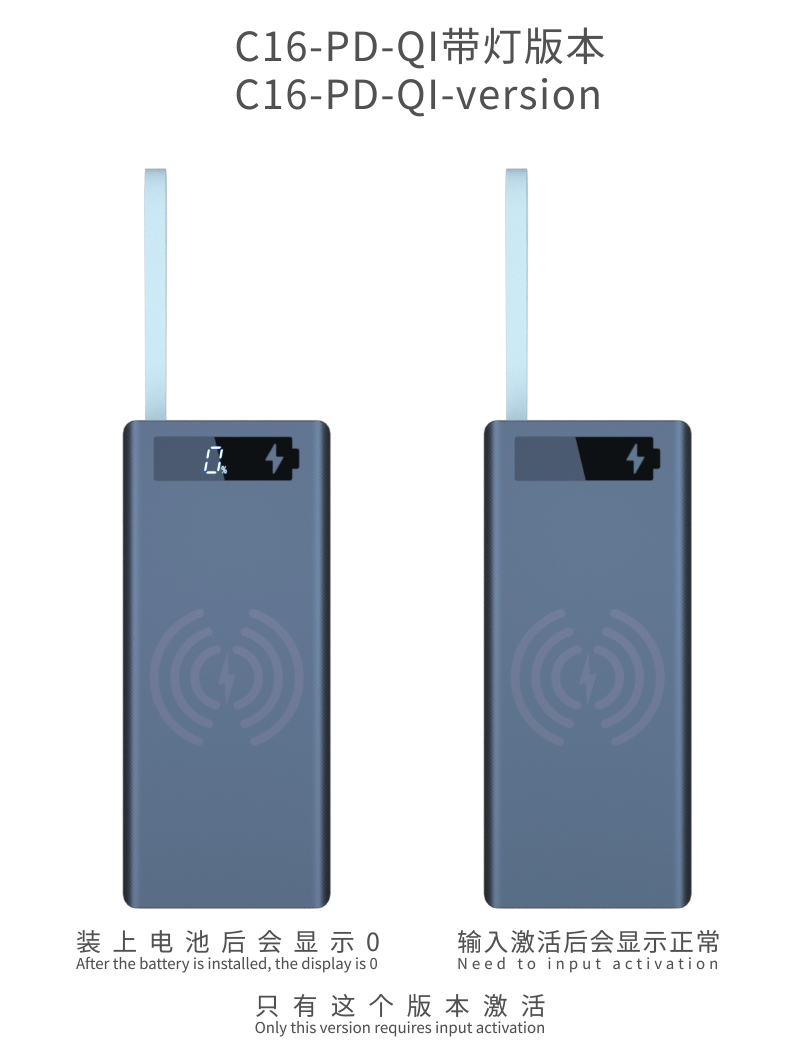

note: After the battery is installed, the digital power display is accurate only after the battery is fully charged and discharged! Specific Method: after installing the battery, discharge it first, that is, charge and use the mobile phone until the power is used up and shut down, and then charge the power supply until the display is full, and then it can be used normally. (Remember! If you remove the battery and replace the battery after equalization, you need to re-equalize it. ）
Label label introduction to quasi-3 generation functions:
10W standard function parameters
after installing the battery, input the power box to charge and activate it.
1. Two input ports: one MIRO Android Jack and one Type-C LeTV Huawei Jack.
Input voltage: 5V (do not charge with charger with 9V and 12V voltage)
input current: 1A-2A (use 1A-2A current, do not use more than 2.2A current to charge)
2. Two output ports: output 5v 2A (total current of two ports 2A)

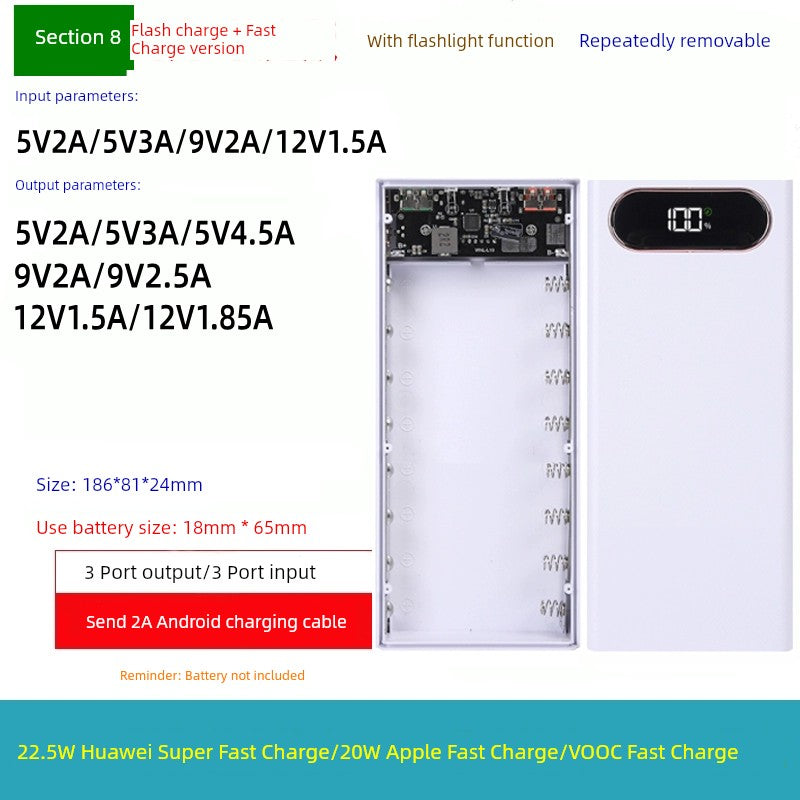

22.5W fast charge function introduction:
* VOOC fast charge, Apple 20W, Huawei 22.5W, Xiaomi OPPO vivo fast charge
output power up to 22.5W
• Output fast charging protocol * PPS/PD3.0/PD2.0
* QC4+/QC4/QC3.0/QC2.0
* AFC * FCP
* SCP
* PE2.0/PE1.1
* SFCP
* Low Voltage Direct charge
enter fast charging protocol
* PD3.0/PD2.0
* AFC
* FCP
* SCP
* PE1.1
note: After the battery is installed, the digital power display is accurate only after the battery is fully charged and discharged! Specific Method: after installing the battery, discharge it first, that is, charge and use the mobile phone until the power is used up and shut down, and then charge the power supply until the display is full, and then it can be used normally. (Remember! If you remove the battery and replace the battery after equalization, you need to re-equalize it)

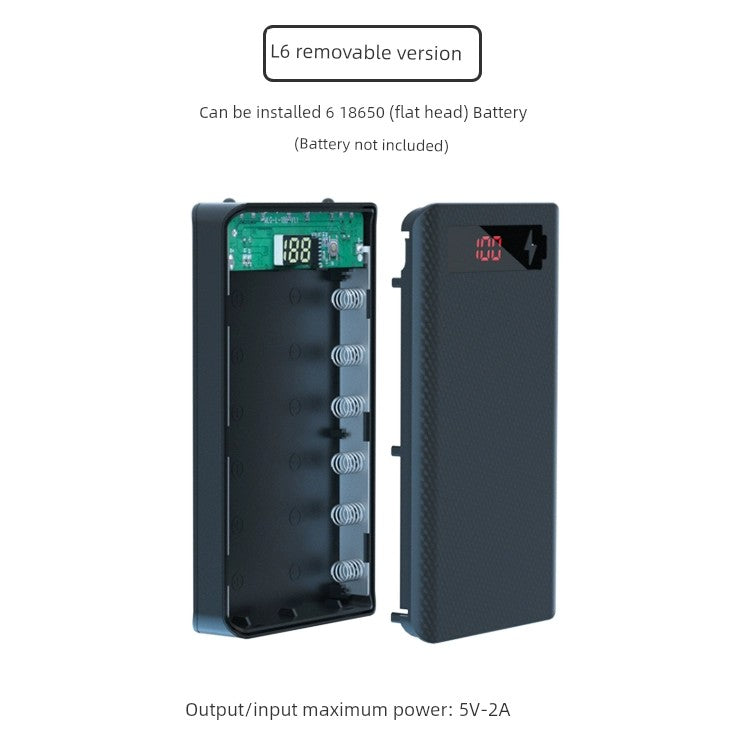

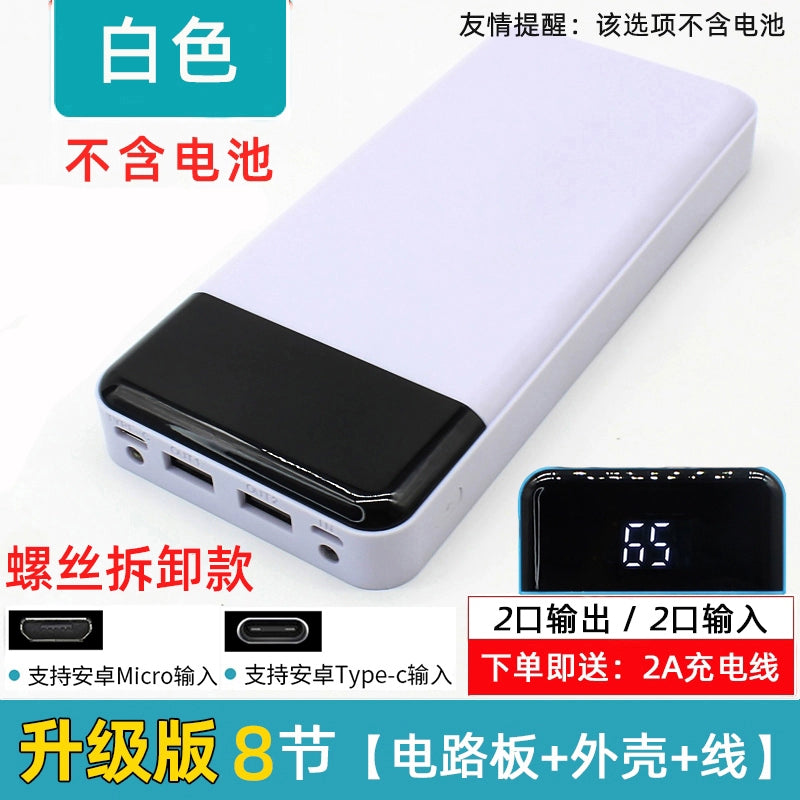

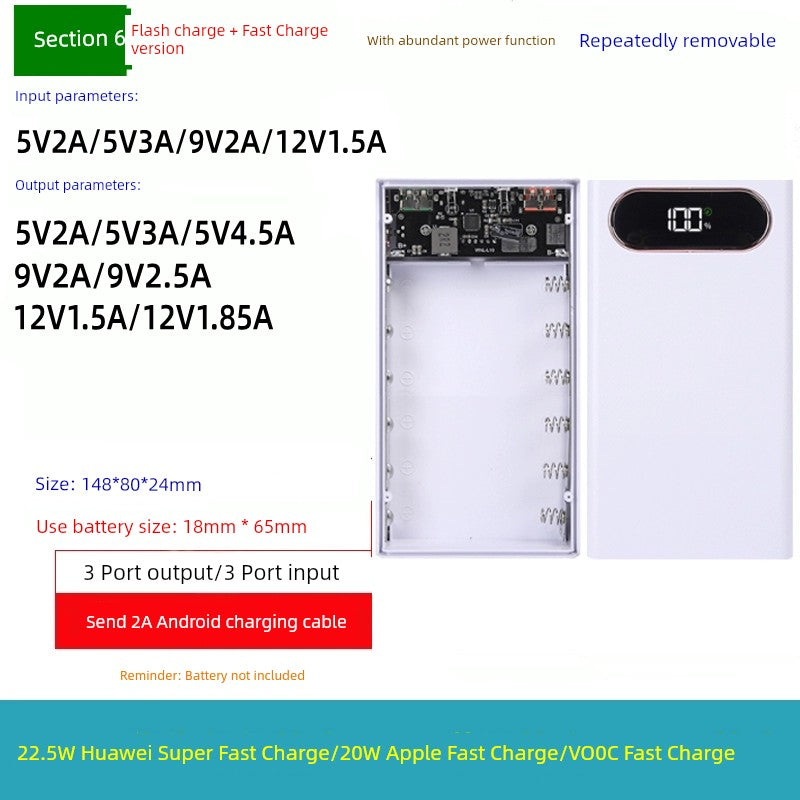

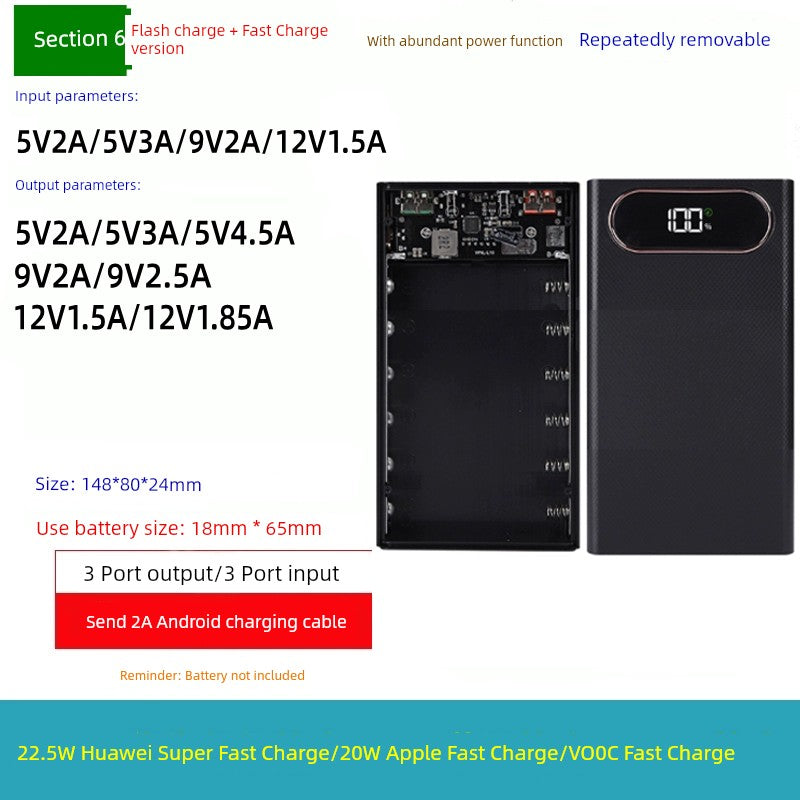

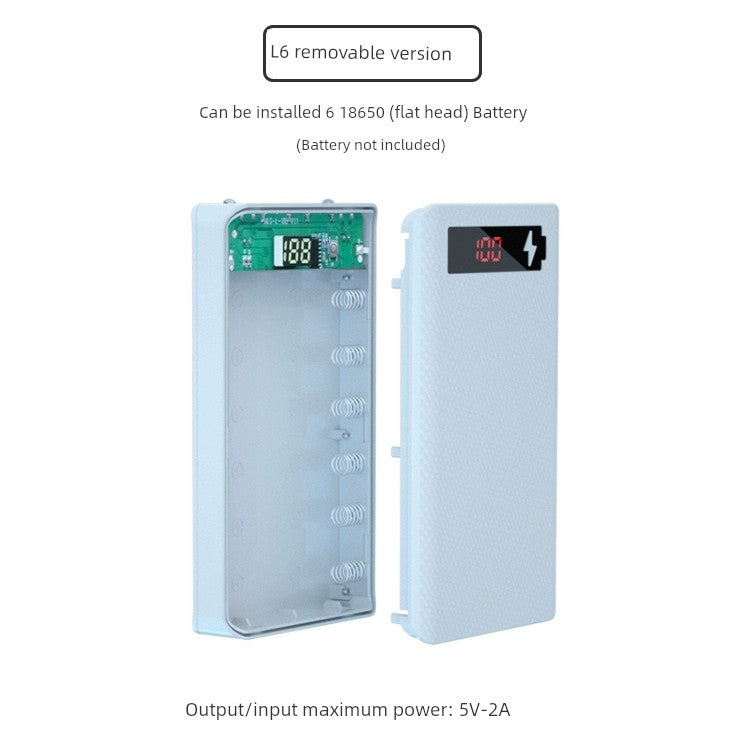

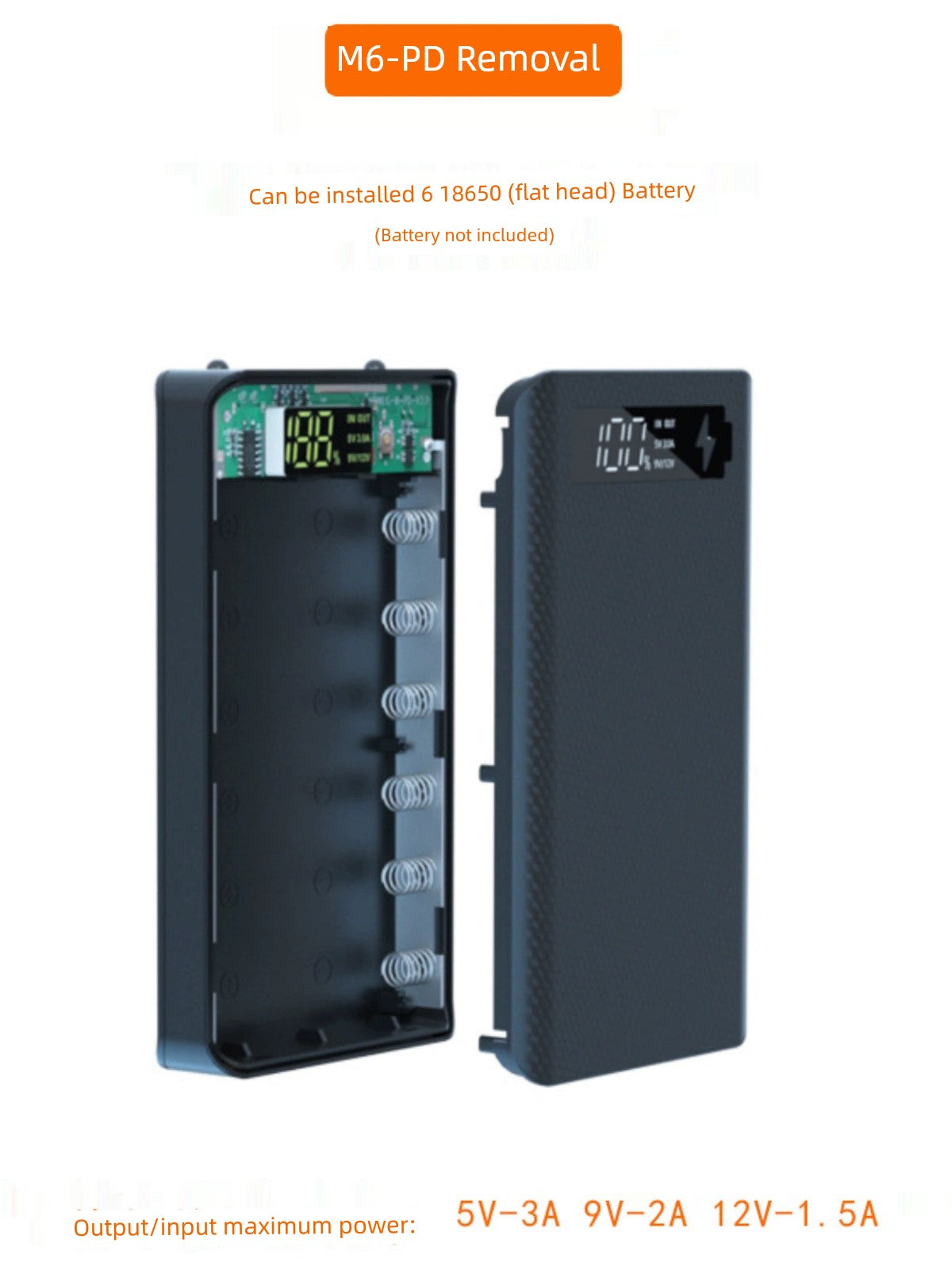

introduction of screw removable 6-section and 8-section power box

screw section 10 section, 12 section, 16 section, slide cover 21 section
18650 flat head battery Movable power supply welding-free nesting [without battery]]
* VOOC fast charge, Apple 20W, Huawei 22.5W, Xiaomi OPPO vivo fast charge
current up to 5A, efficiency up to 96%
* 4.2/4.35/4.4/4.5V battery type
* JEITA specification
* Temperature loop control
• Synchronous boost
output power up to 22.5W, efficiency up to 95%
automatic load detection/light load detection
* Small current mode
• Output fast charging protocol * PPS/PD3.0/PD2.0
* QC4+/QC4/QC3.0/QC2.0
* AFC * FCP
* SCP
* PE2.0/PE1.1
* SFCP
* Low Voltage Direct charge
enter fast charging protocol
* PD3.0/PD2.0
* AFC
* FCP
* SCP
* PE1.1

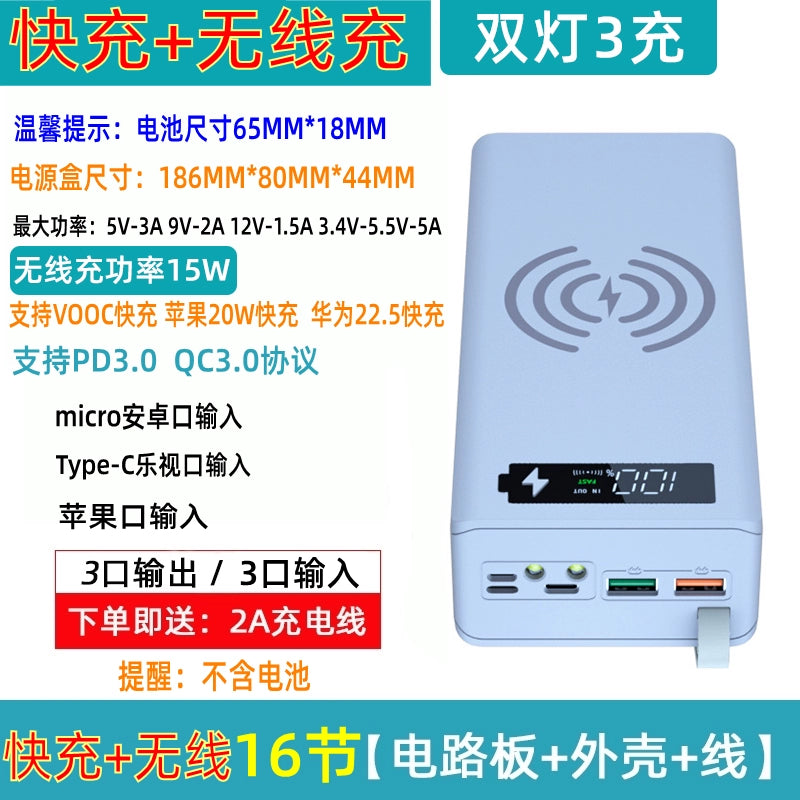

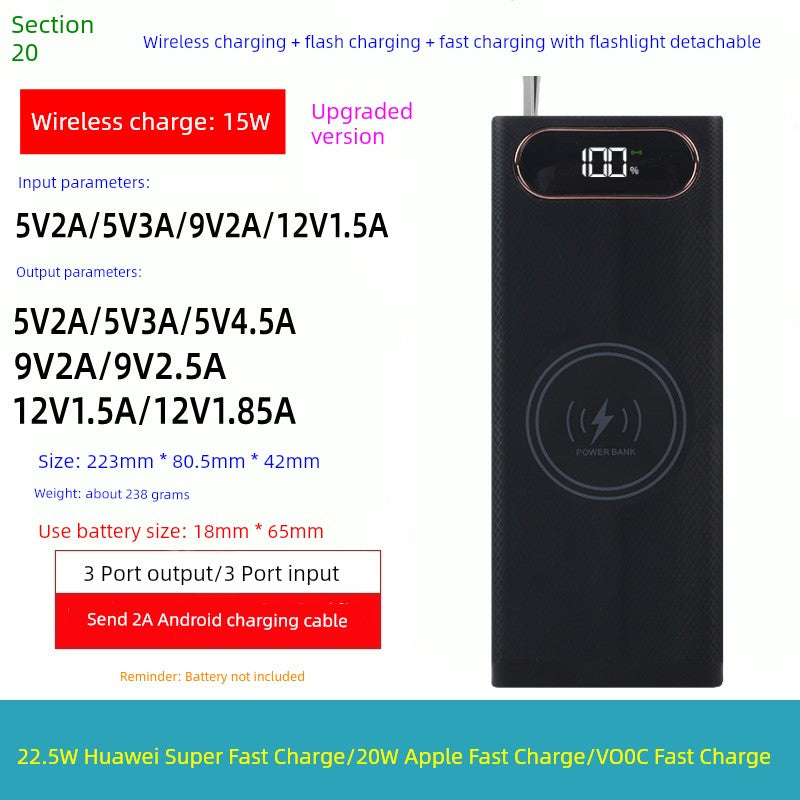

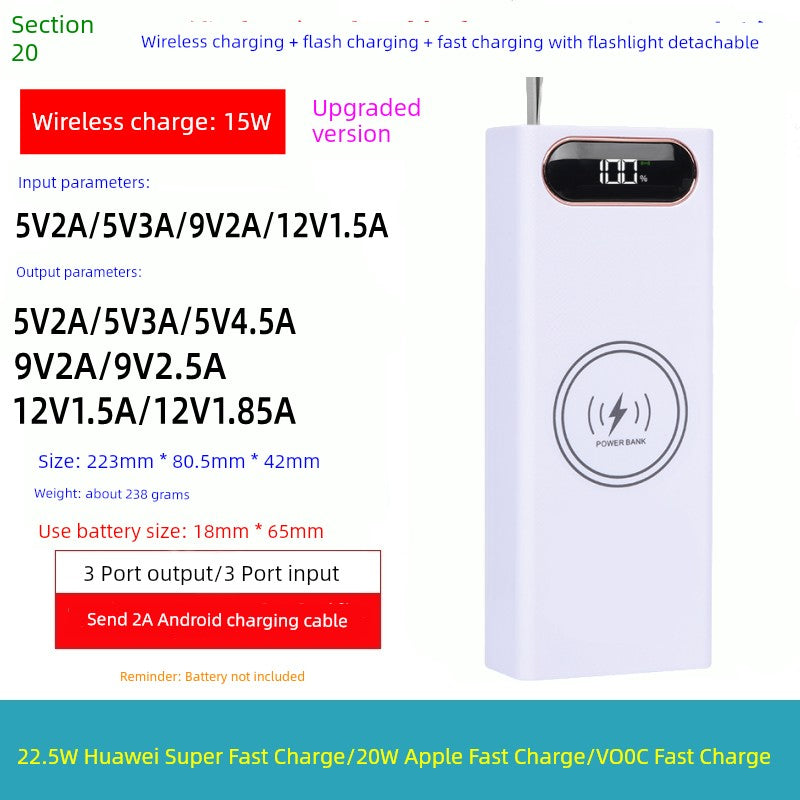

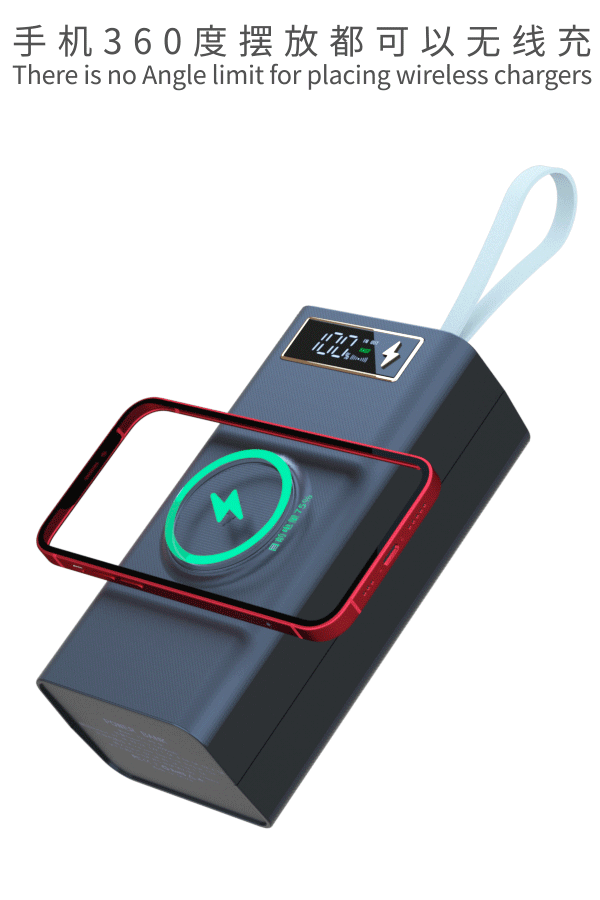

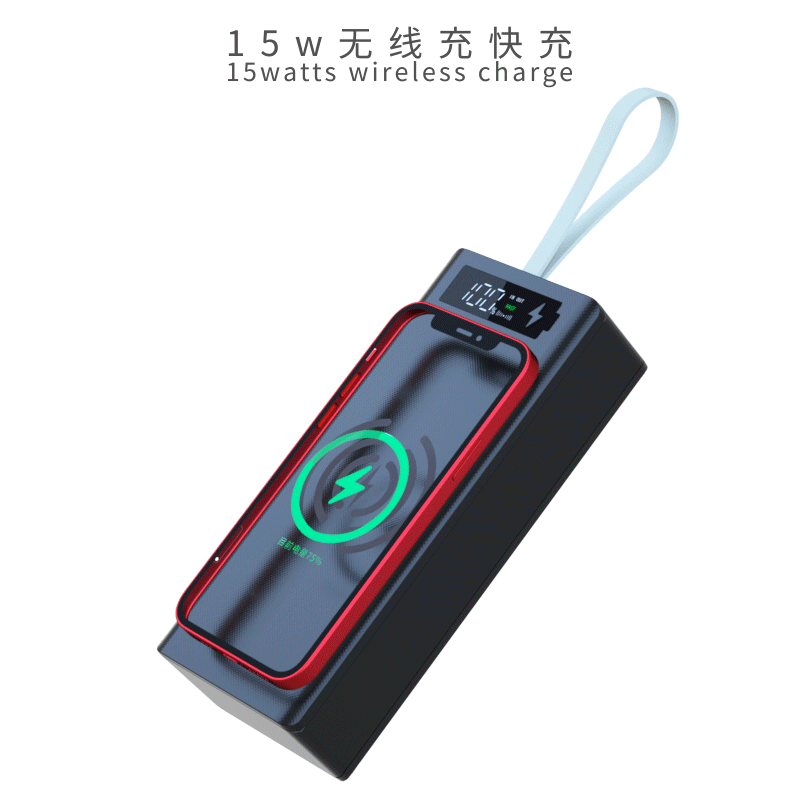

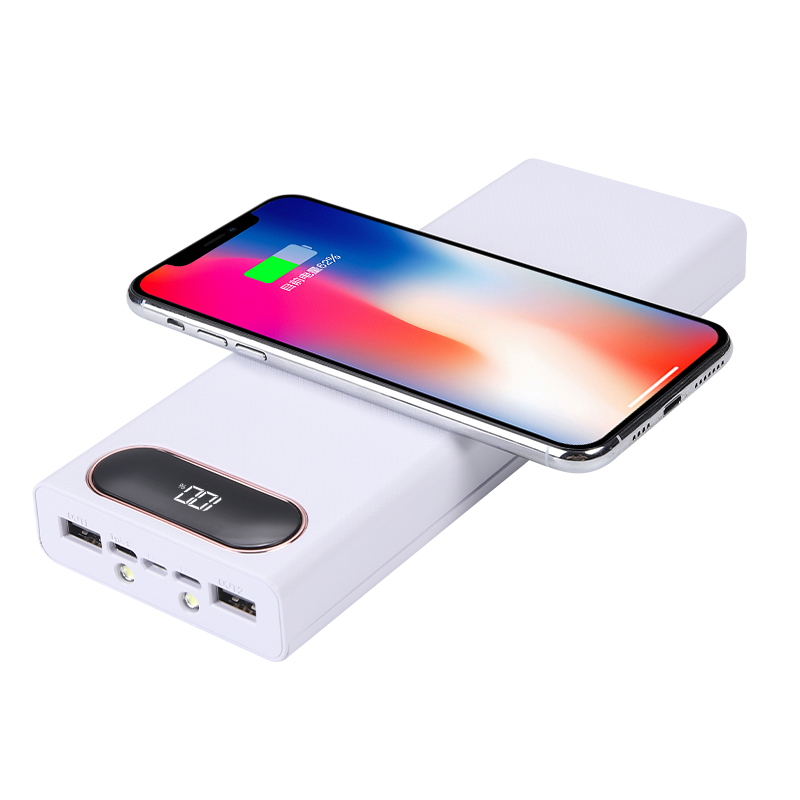

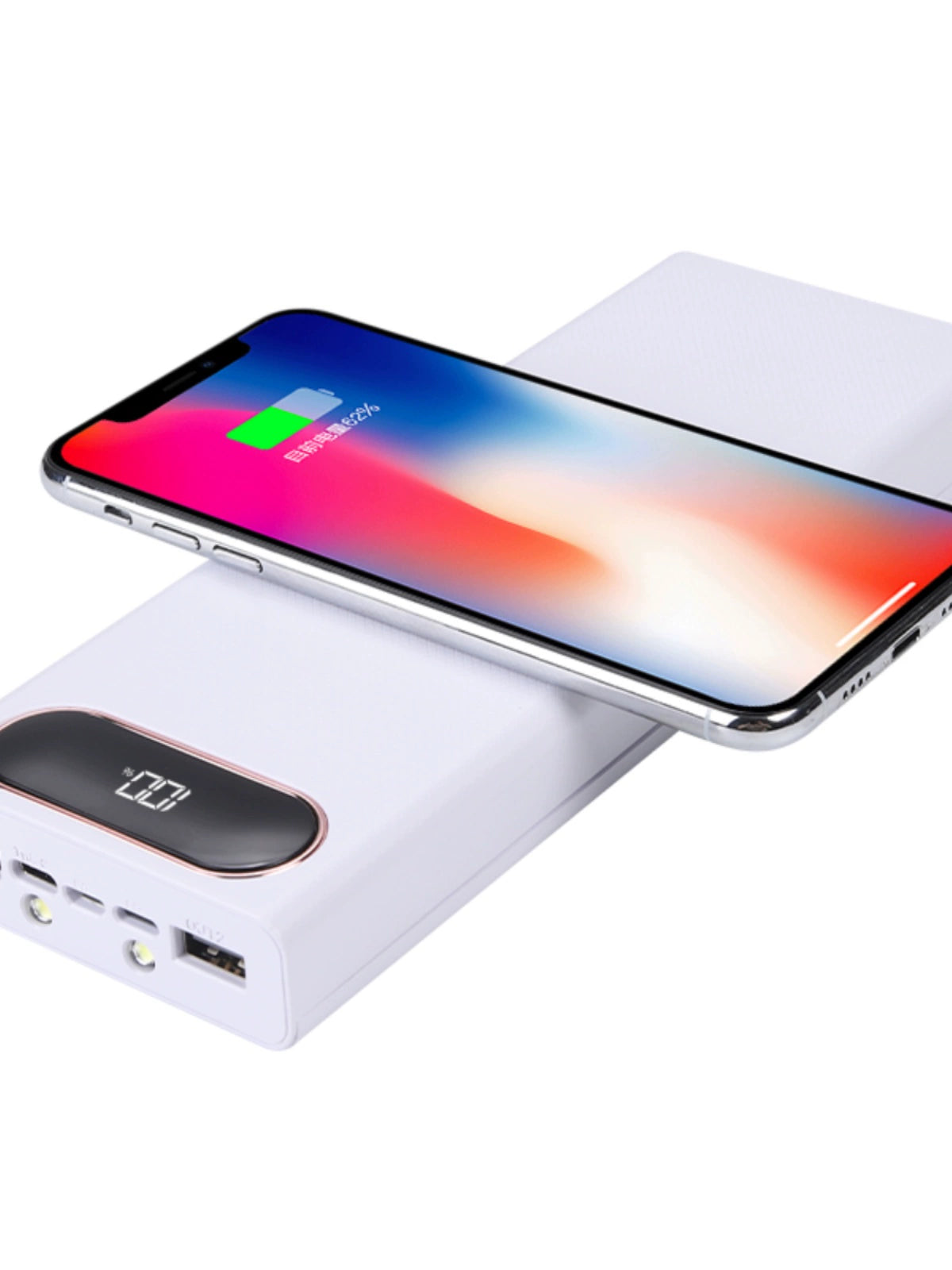

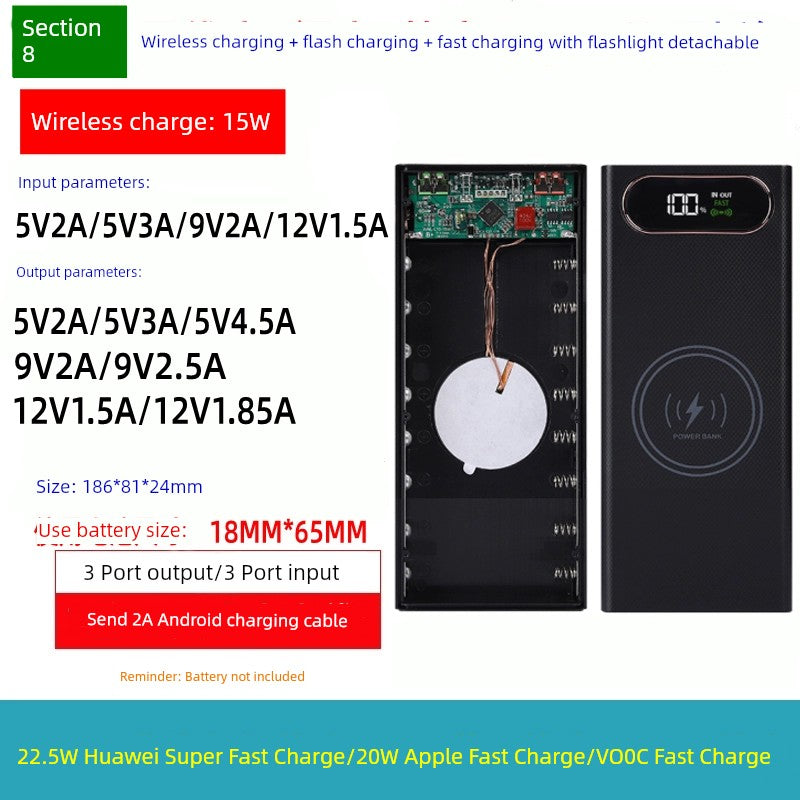

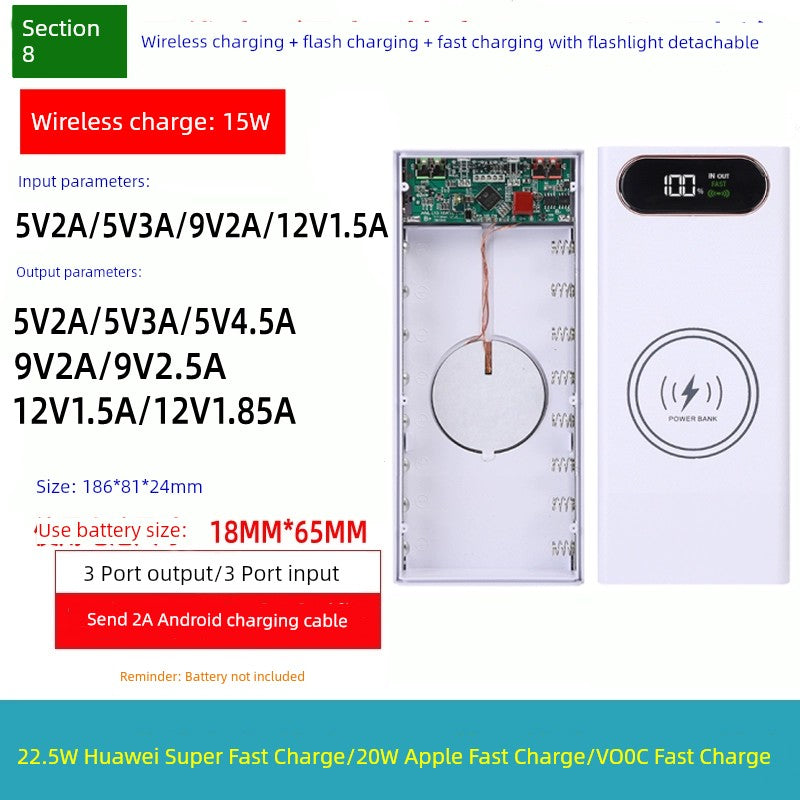

with wireless output function, wireless charging 15W

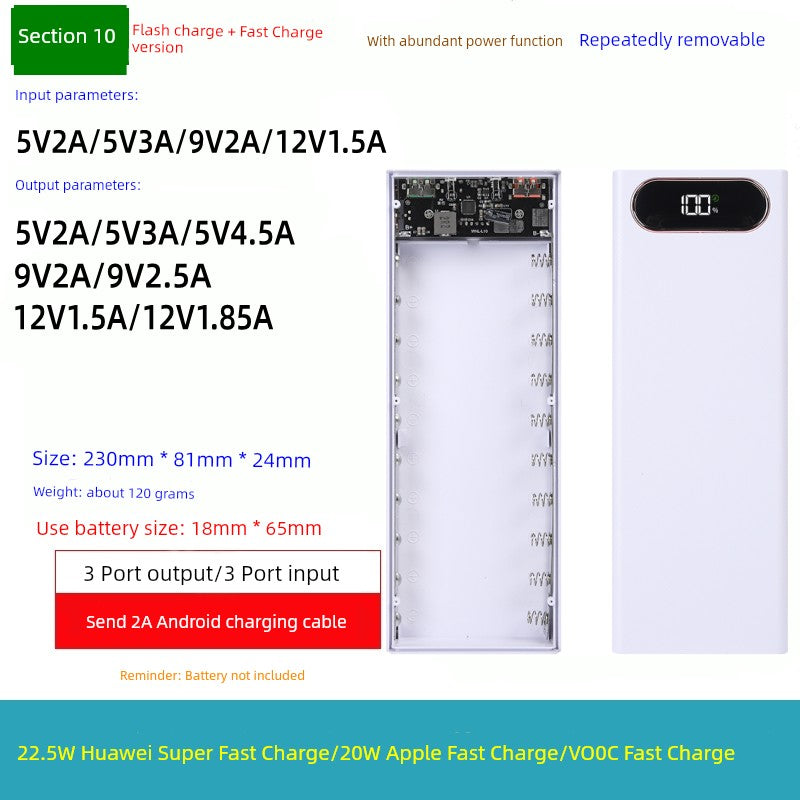

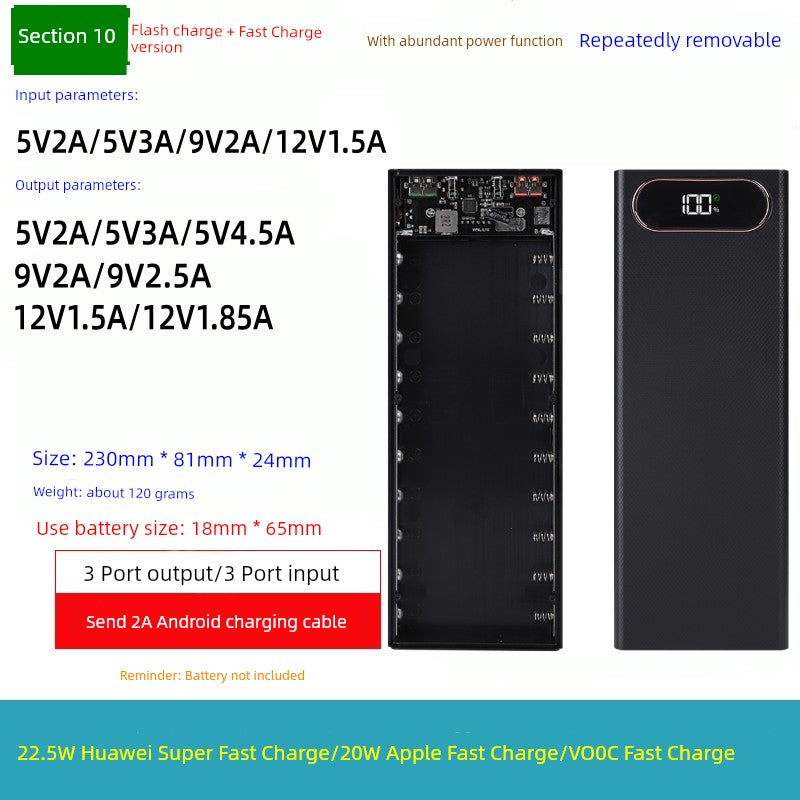

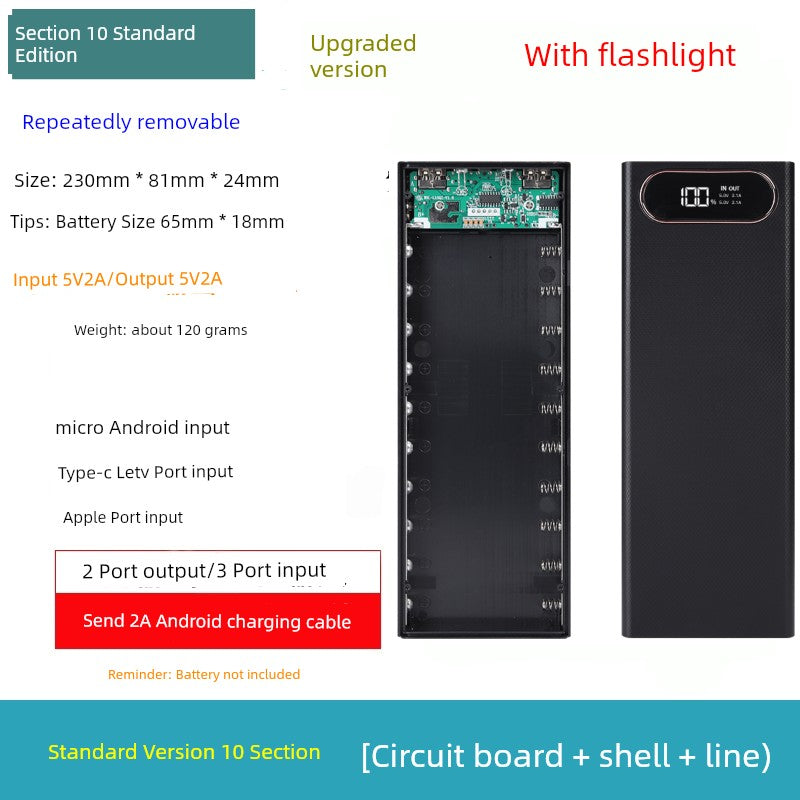

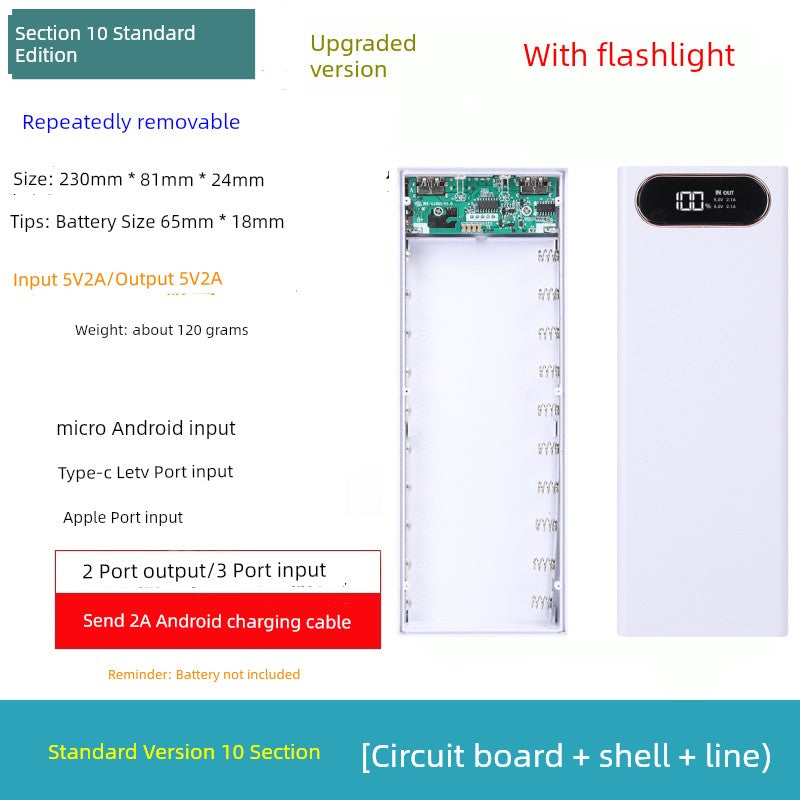

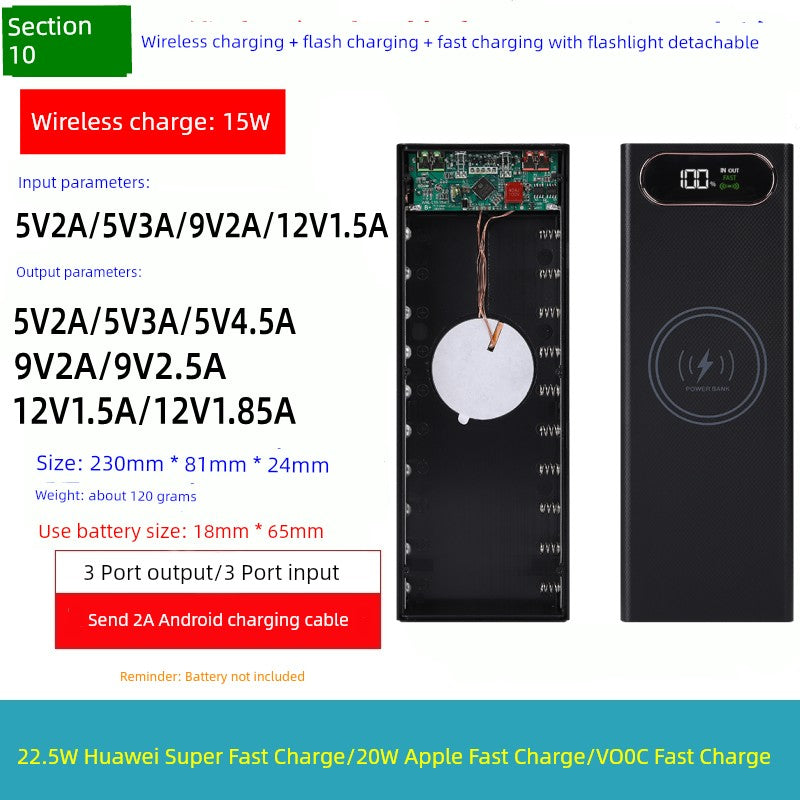

screw section 10 introduction

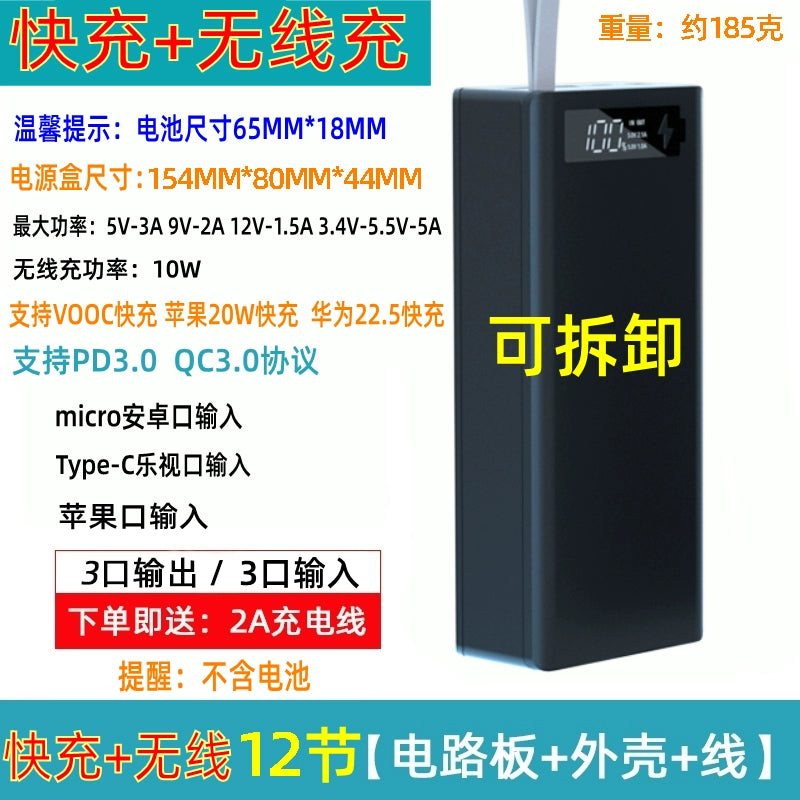

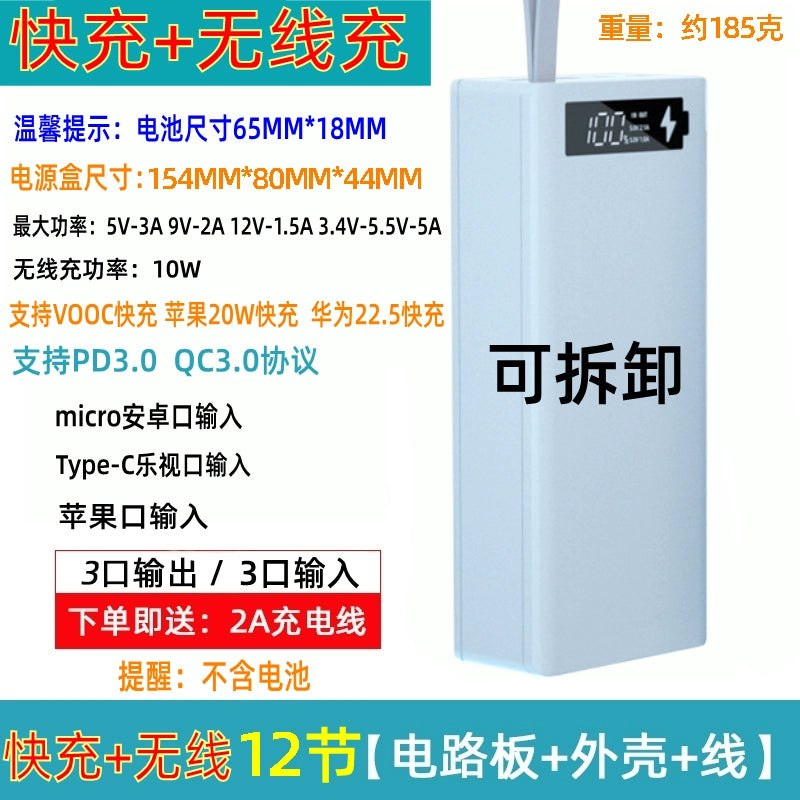

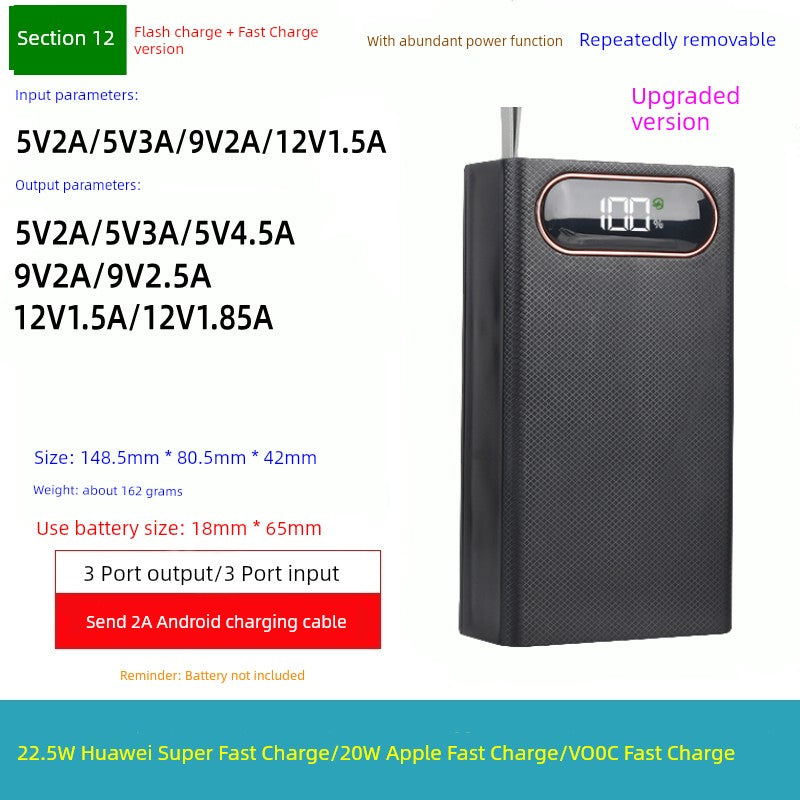

screw section 12 introduction

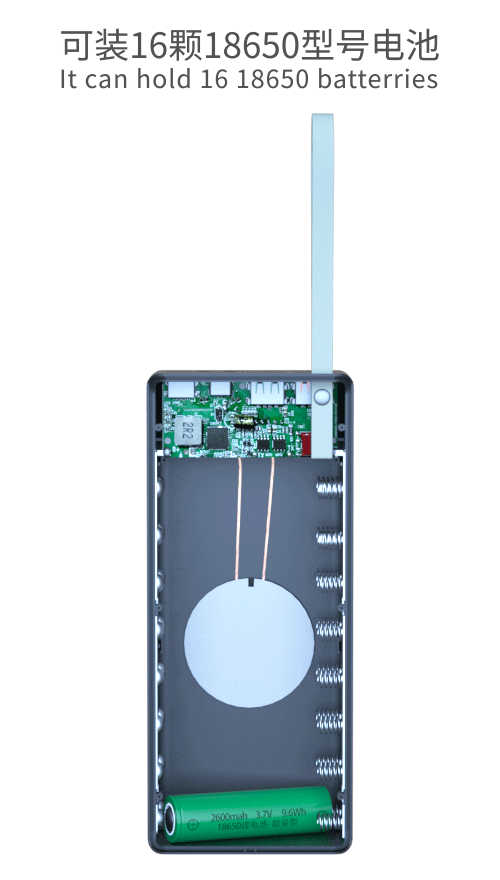

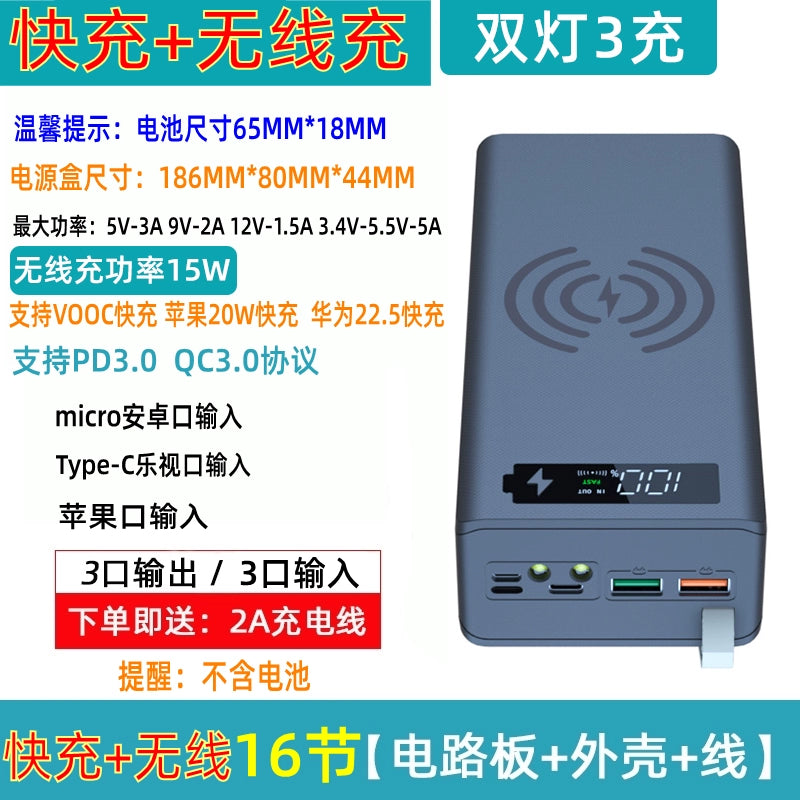

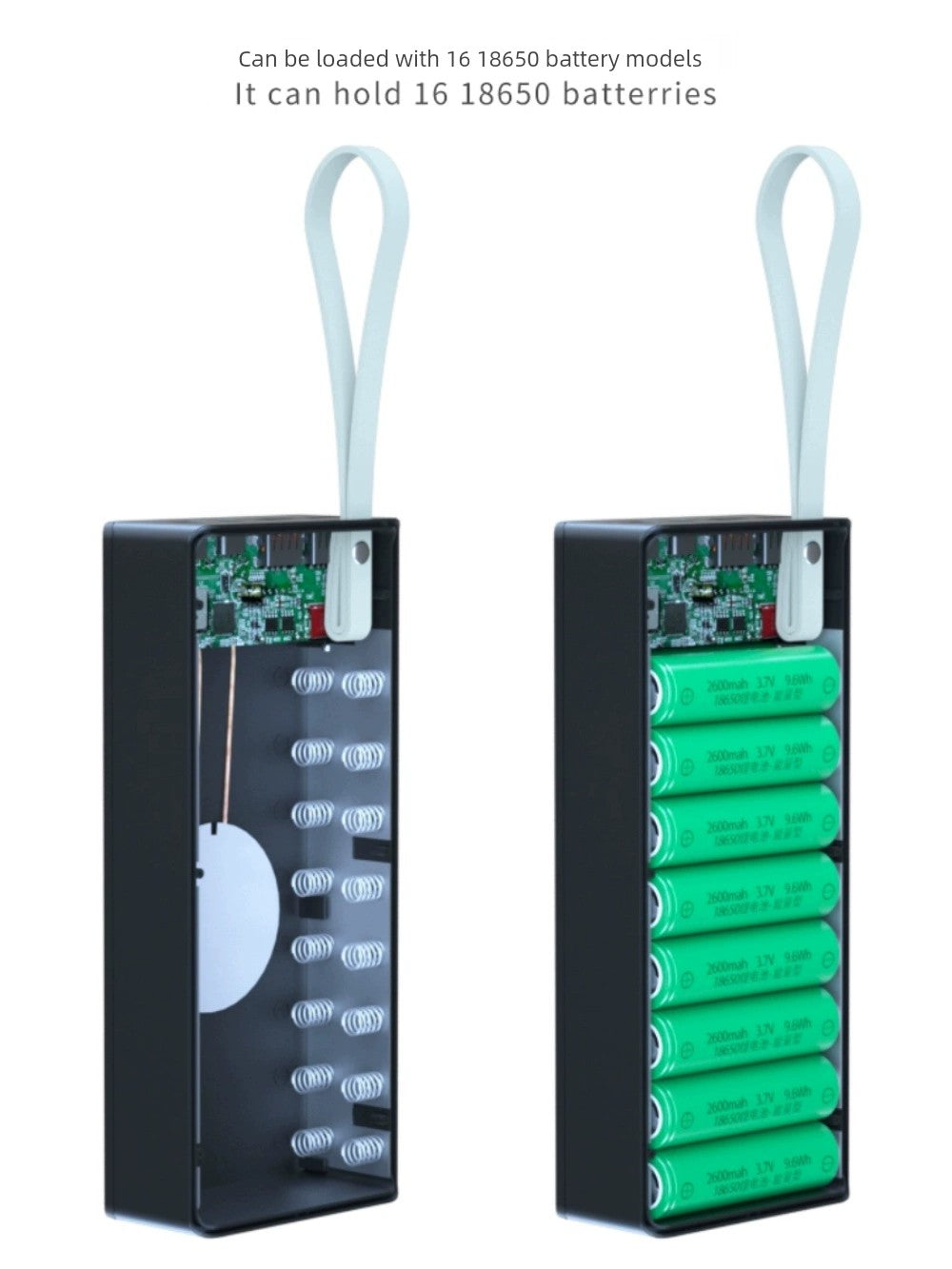

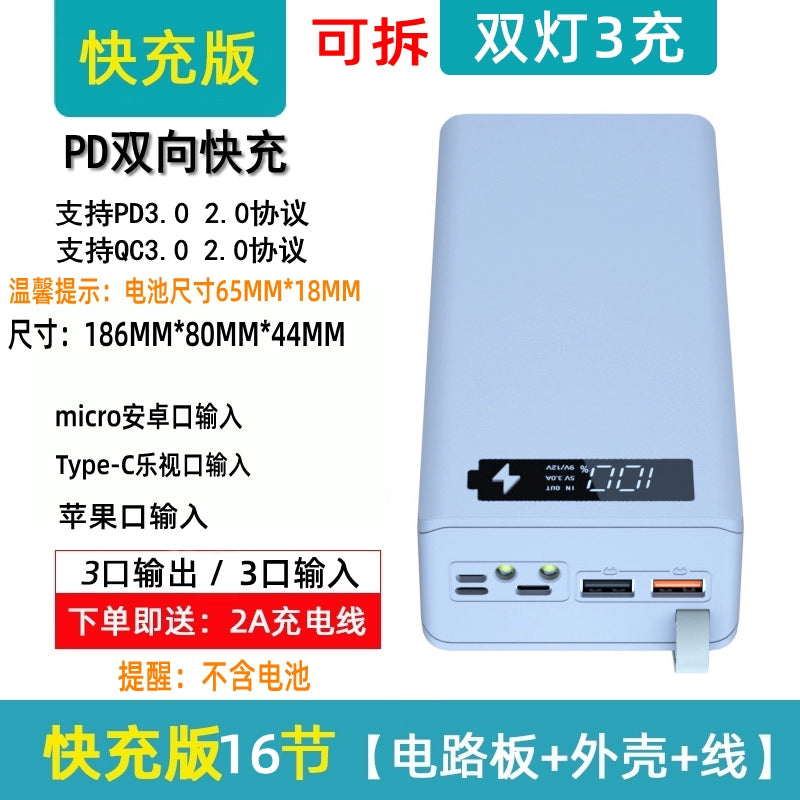

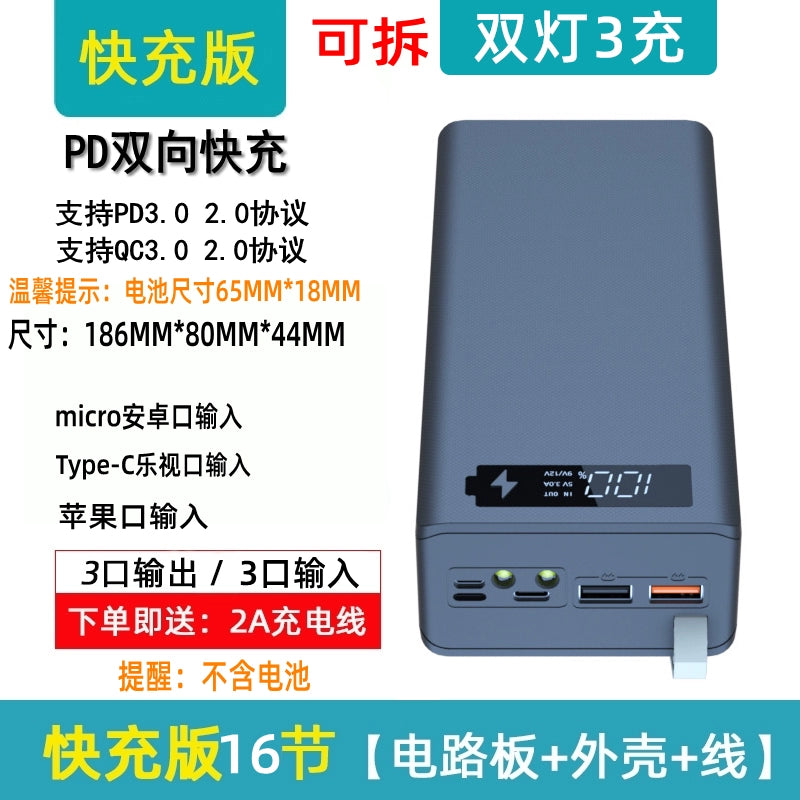

screw section 16 introduction

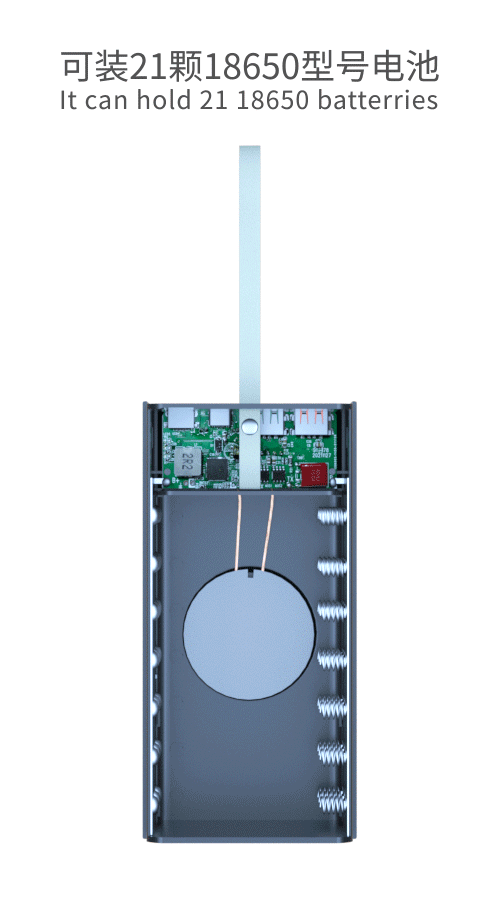

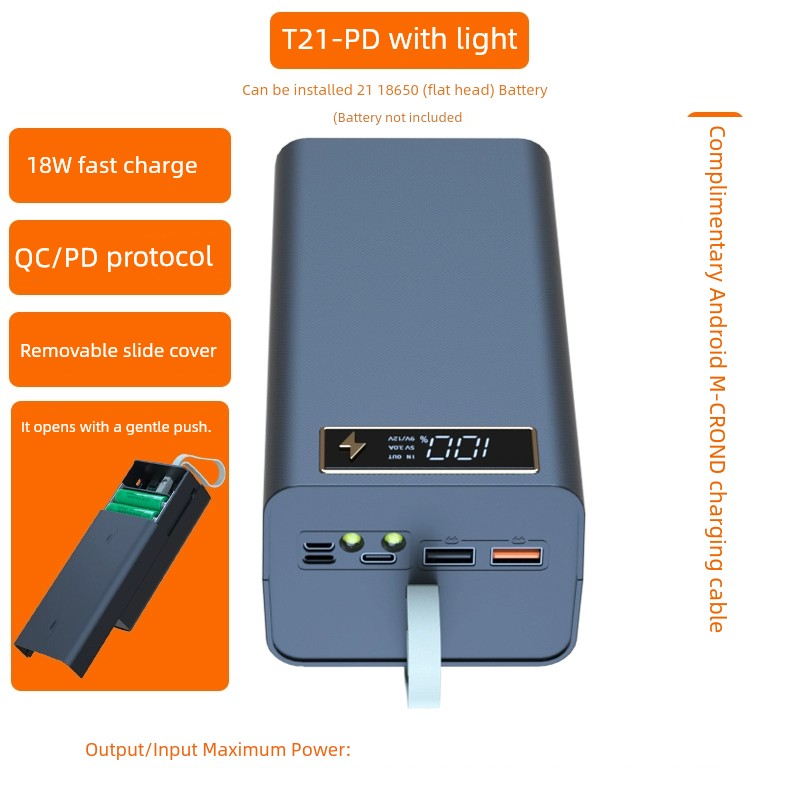

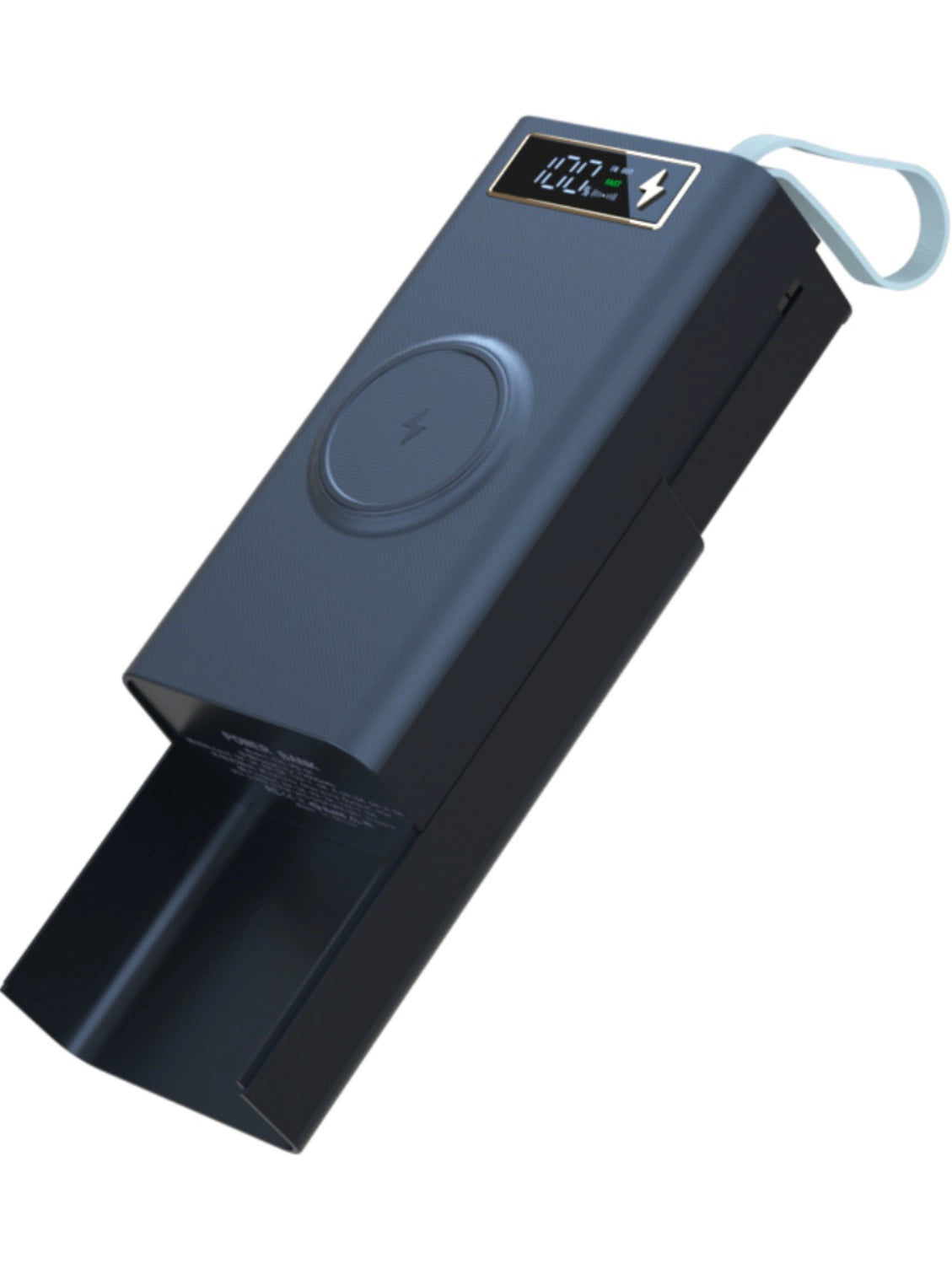

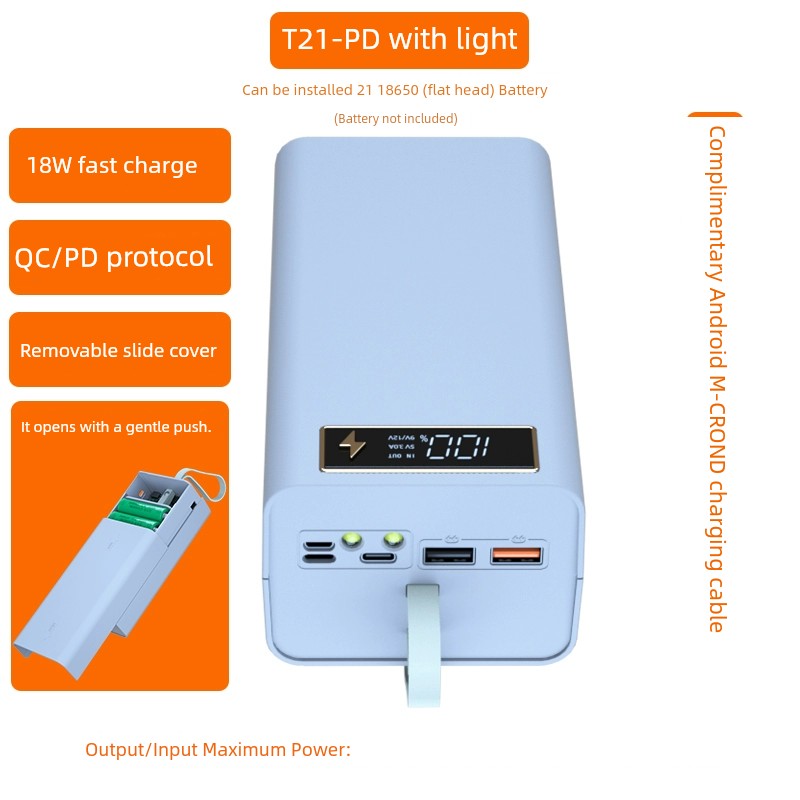

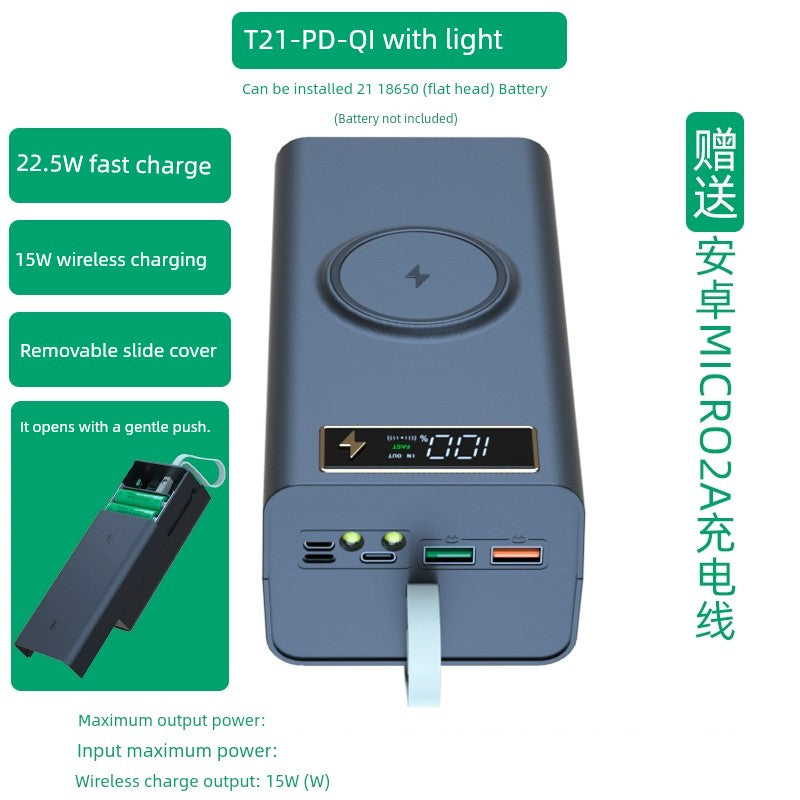

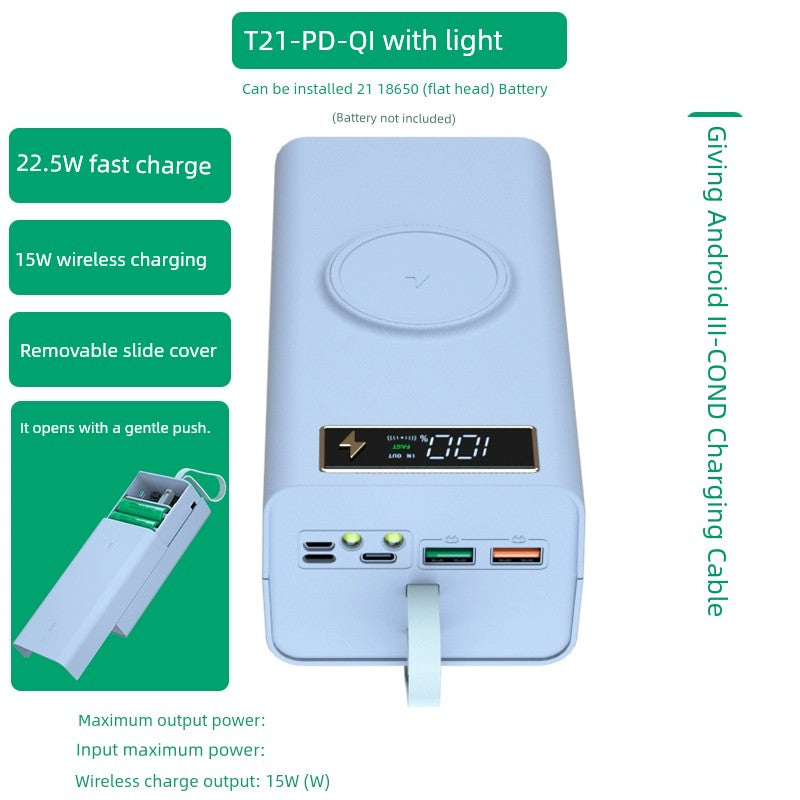

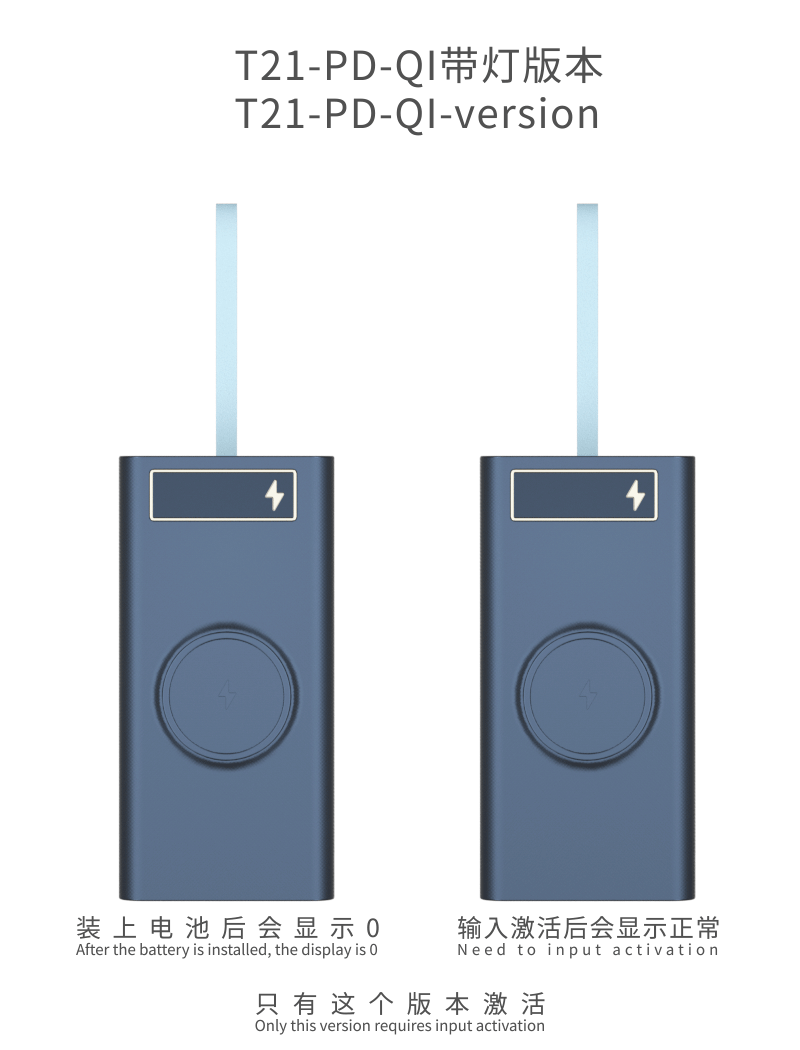

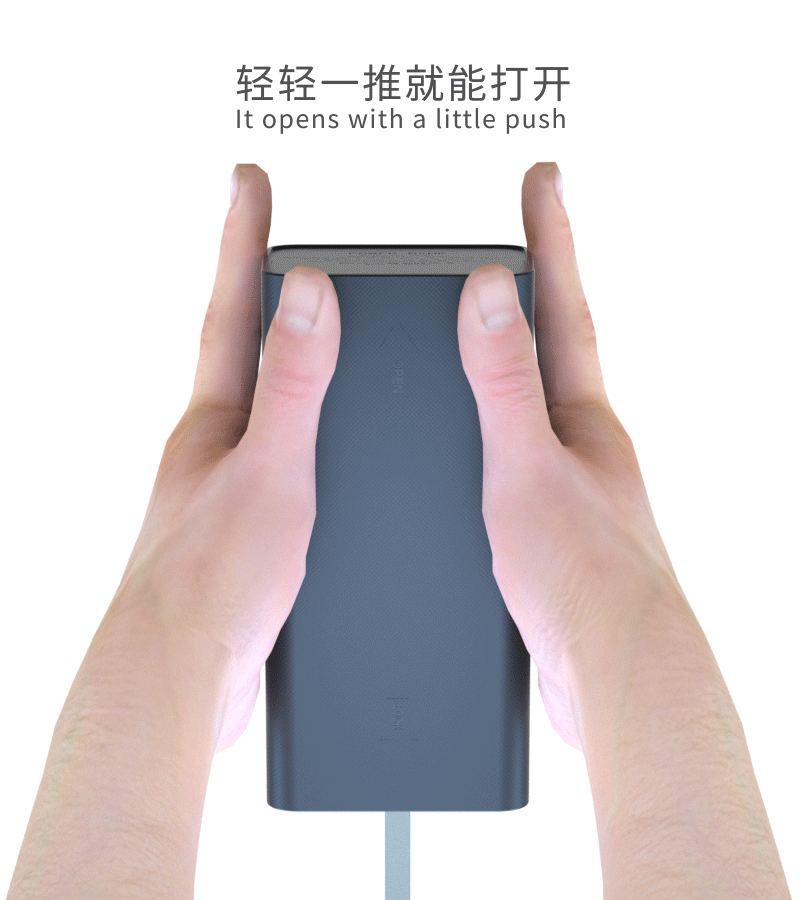

slide cover section 21 Introduction

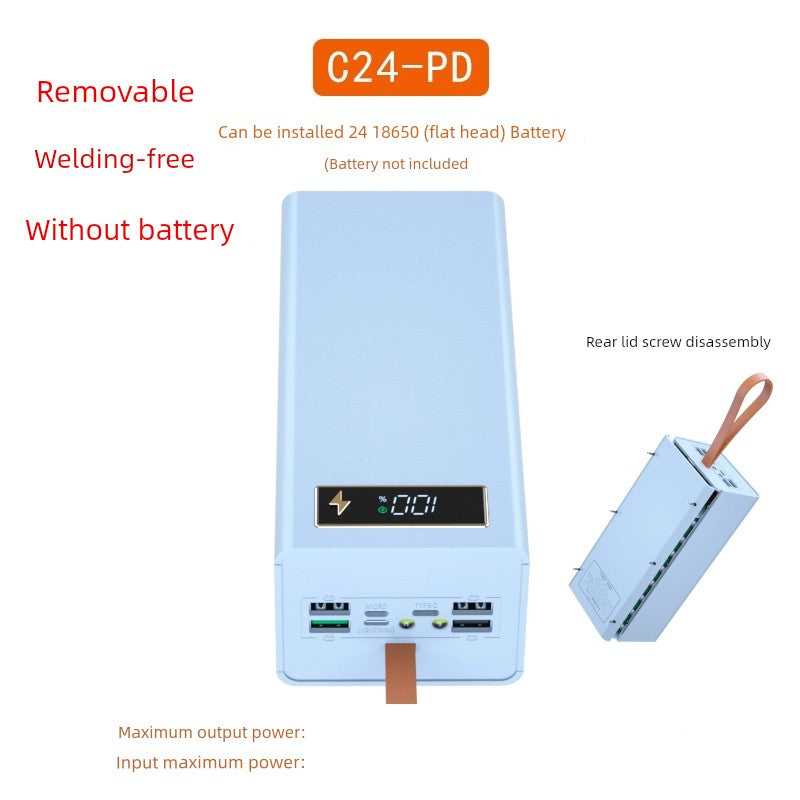

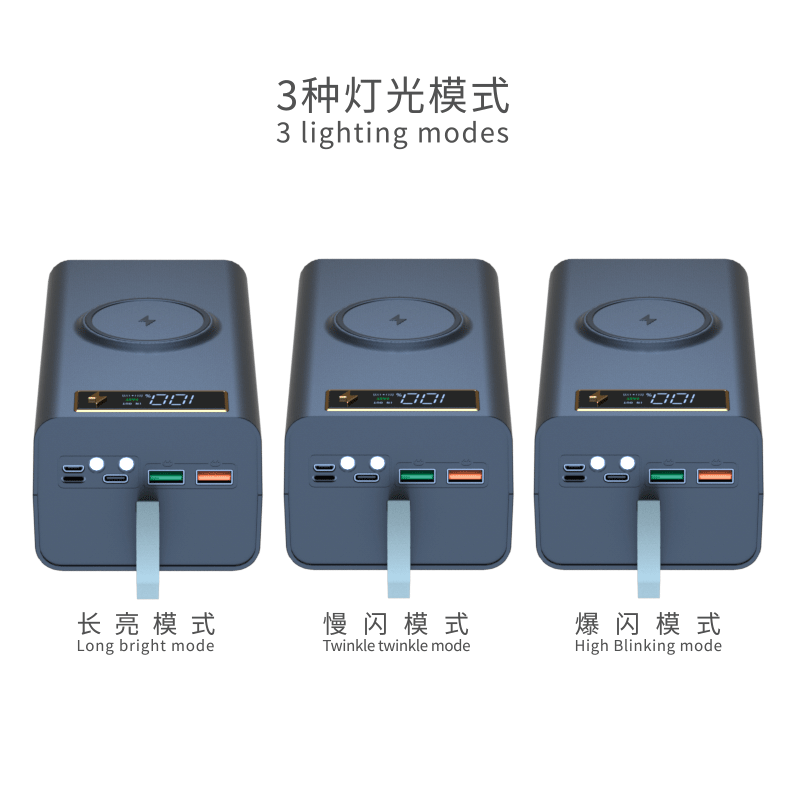

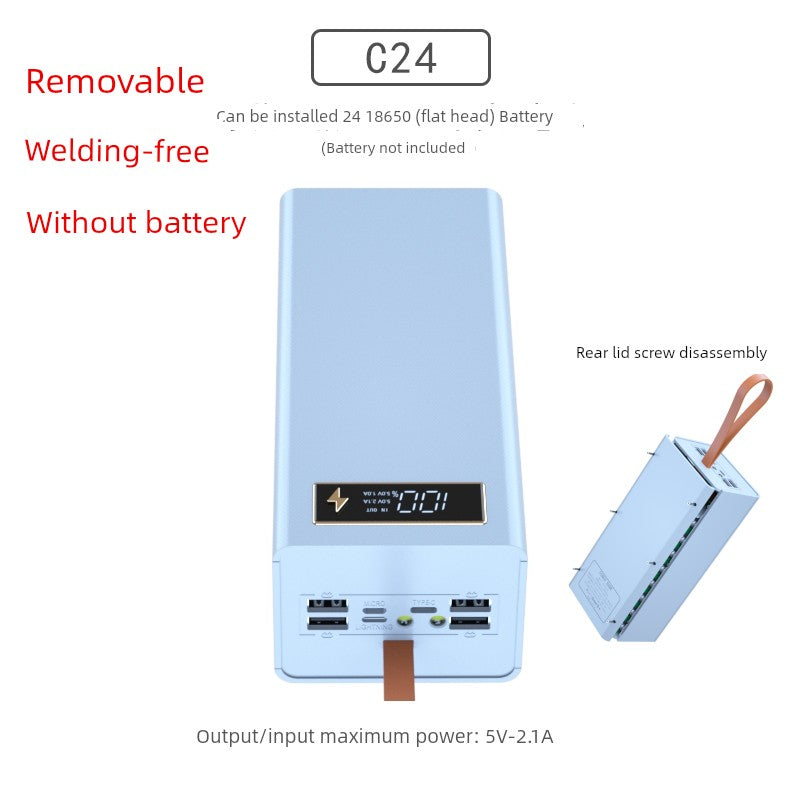

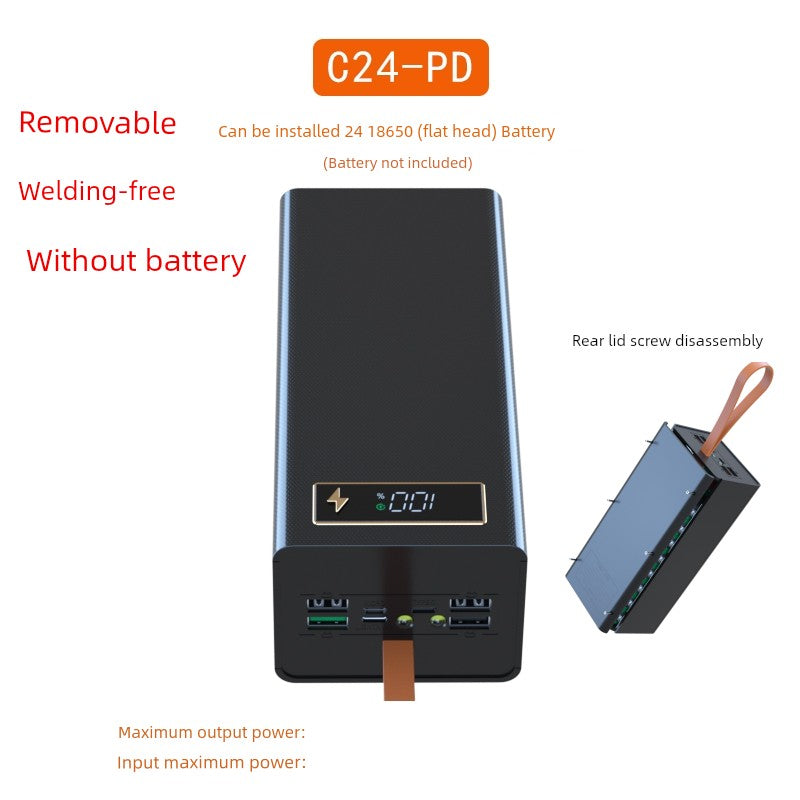

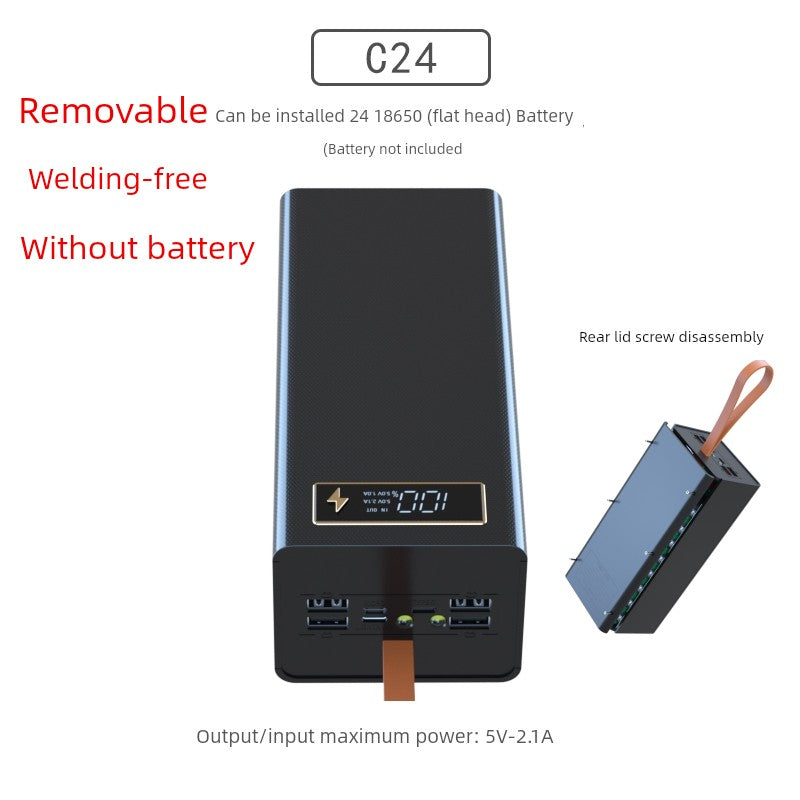

screw removable 24-section 18650-head battery with light Movable power supply (without battery)
introduction to Standard edition

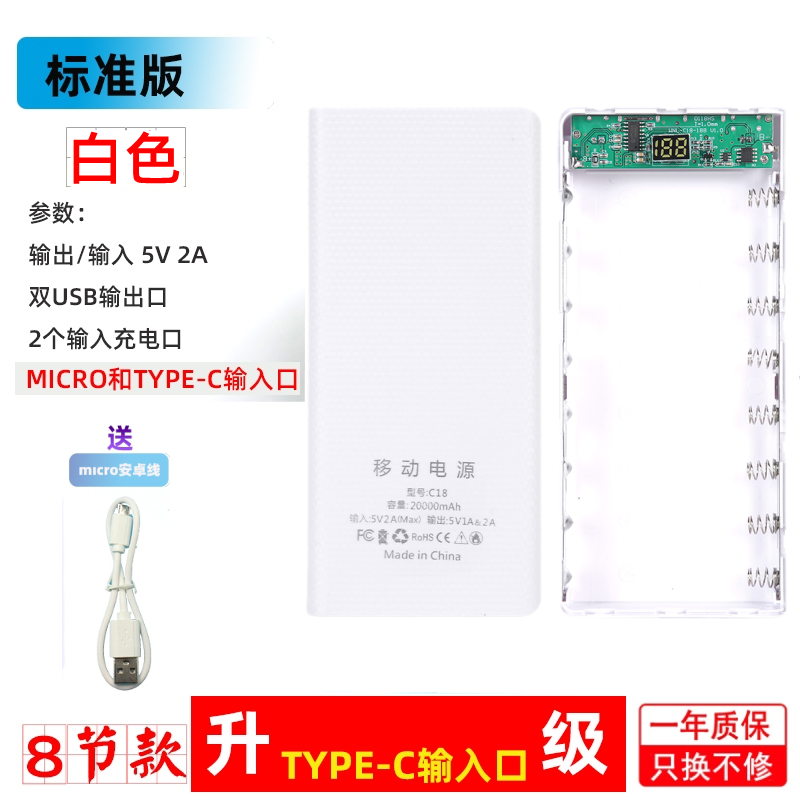

input 5v 2A, output 5v 2A

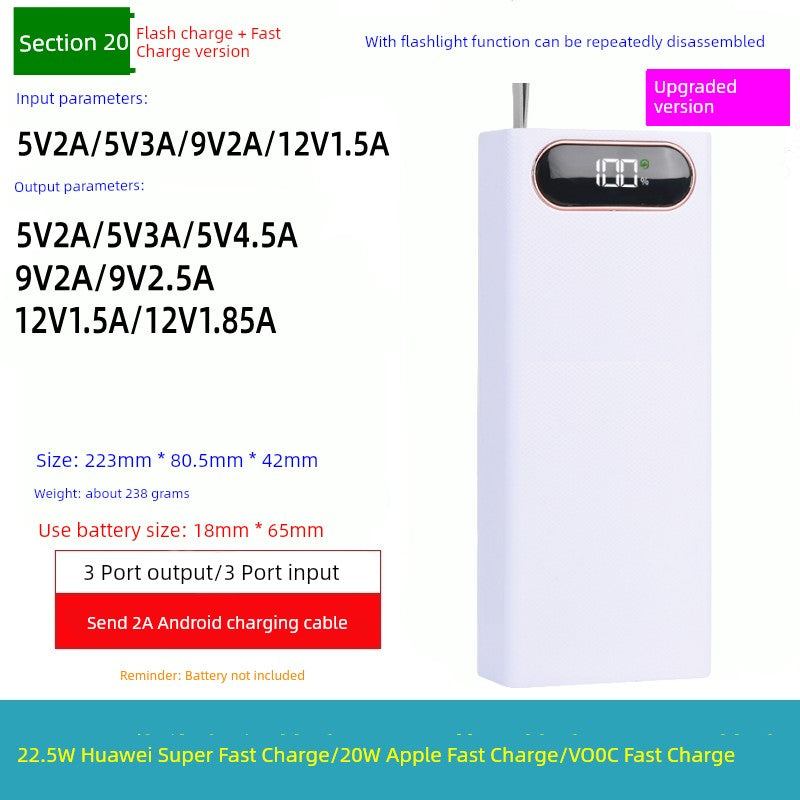

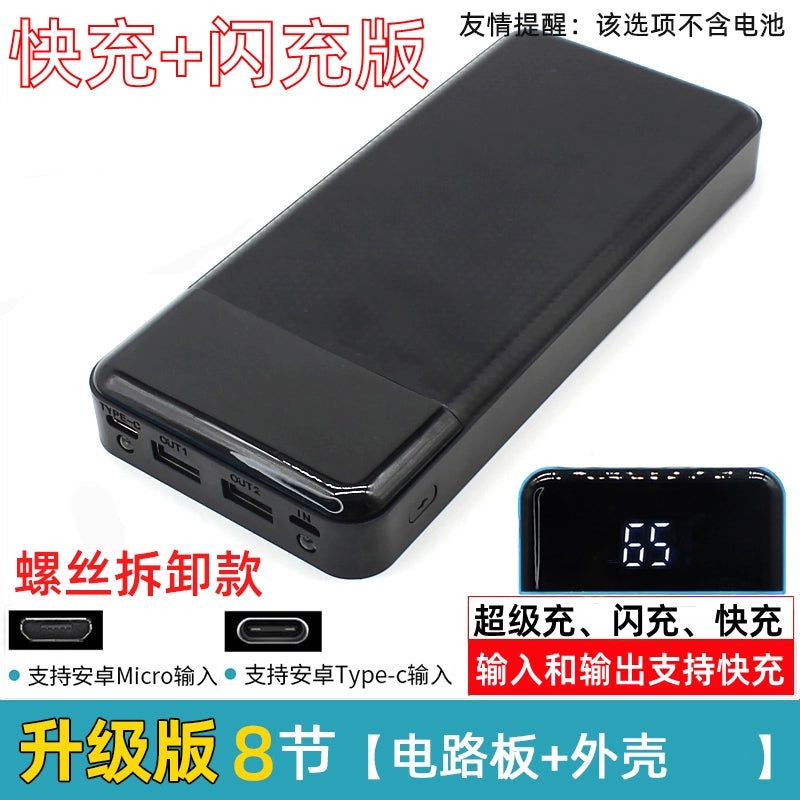

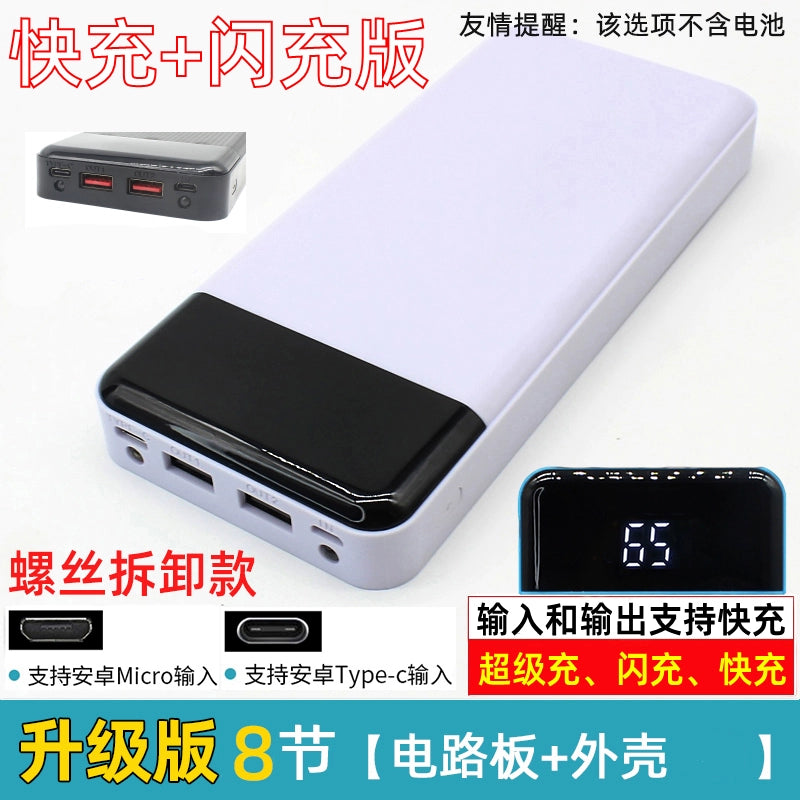

introduction to fast charge + flash charge
* VOOC fast charge, Apple 20W, Huawei 22.5W, Xiaomi OPPO vivo fast charge
* 4.2/4.35/4.4/4.5V battery type
* JEITA specification
output power up to 22.5W,
output fast charge protocol * PPS/PD3.0/PD2.0
* QC4+/QC4/QC3.0/QC2.0
* AFC * FCP
* SCP
* PE2.0/PE1.1
* SFCP
* Low Voltage Direct charge
enter fast charging protocol
* PD3.0/PD2.0
* AFC
* FCP
* SCP
* PE1.1

this link does not have wireless and magnetic versions.
