SPECIFICATIONS

Brand Name: GHXAMP

Cabinet Material: Wood

Audio Crossover: Three-Way

Waterproof: No

Communication: bluetooth

Communication: Audio Line

Speaker Type: Combination

Channels: 1

Support APP: No

Battery: No

Category: Speakers

Use: Home

Origin: Mainland China

Sound Mode: other

Voice Control: No

Power Source: DC

Power Source: None

Power Source: AC

Number of Loudspeaker Enclosure: 1

Input Power(W): 50-99 W

Input/Output: other

Intelligent Personal Assistant: none

Support Apt-x: No

Feature: None

Playback Function: DVD

Playback Function: Radio

Playback Function: CD

Playback Function: mp3

Playback Function: None

Display Screen: No

Certification: none

Wi-Fi Music: Other

PMPO: NO

Output Power: Other

Remote Control: No

Support Memory Card: No

Material: Metal

Display Screen: No

Built-in Microphone: No

Frequency Range: Other

Power: 80W

Frequency response range: 600Hz

Sensitivity: 89DB

Net Weight: 650g/pcs

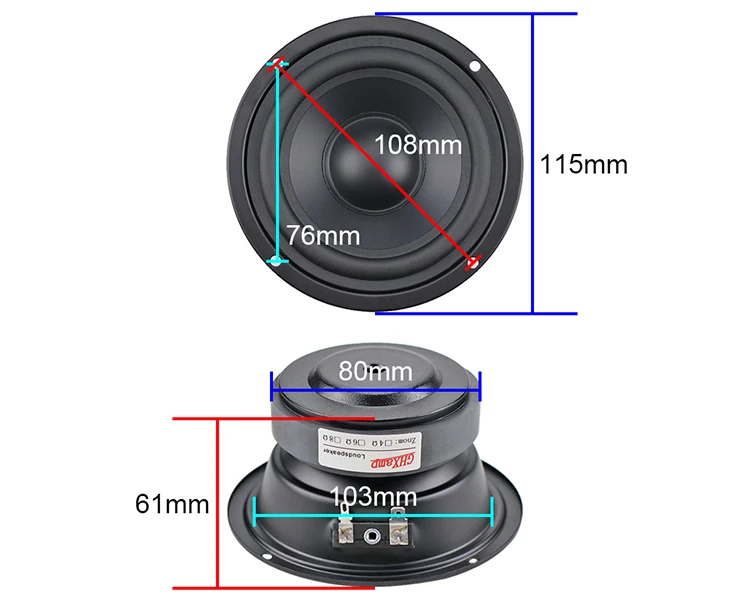

Outside diameter: 115MM

Diagonal screw hole: 108mm

Open Hole diameter: 96MM

Matte coated paper tray: yes

Rubber speaker side: yes

HIFI: yes



Tip: This Mid Speaker DC Resistance about 5.2ohm, Impedance is 8OHM，Please be aware that。Thanks



Brand:GHXAMP, ,Price for 1pc.





1.Speaker with Matte coated paper tray, rubber speaker side, sound thick natural,



2.increase the magnet to ensure that the voice coil in the high power is still stable work.



3.Fully enclosed cast iron horn tray, can effectively isolate the subwoofer caused by the impact of airflow, so that the midrange speakers are not affected to play the true color.



Rated power: 40W

Max power :80W

DC resistance: about 5.2ohm

Impedance: 8OHM

Resonant frequency: 600Hz

Frequent frequency: F0-8500hz

Sensitivity: 89DB

Q value: 0.51Qts

Voice coil diameter: 25mm

Magnet diameter: 80mm

Speaker diameter: 115MM

Opening Hole diameter: 96MM

Weight:0.65kg/pcs



Questions about DC impedance:



The impedance is dynamic and the DC resistance is static!

Impedance = resistance *1.2-1.4 times

The impedance rises with the high frequency, and it changes dynamically. If the DC has about 6 ohms, the dynamic impedance is about 8 ohms.



The conventional impedance is 5-6 ohms, and the DC resistance is 3-5 ohms.

The conventional impedance is 7-8 ohms, and the DC resistance is 5-6 ohms.



Tip: In special cases, Due to transportation, some magnets at the bottom of the speaker may be slightly scratched, but only a little, it will not affect the use at all, please pay attention.





Package included:

1pc Pure Midrange Speaker
